Corrugated Gasket

We are offering corrugated gasket,
product description

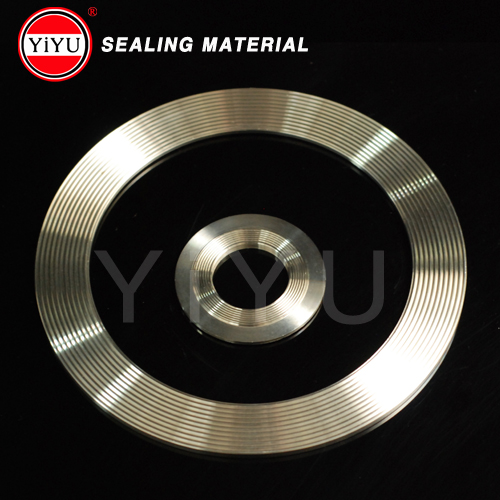

the corrugated gasket is made of machined flat metallic.it can with inner ring and outer ring
performance and features
1. Applicable to high pressure and high temperature location
2. Strong corrosion resistance
3. Stable and reliable sealing function.
scope of application
(1)working temperature: ~650degree
(2)working pressure: 6.4~16.0mpa
(3)min. Pre-tightening specific pressure: y=70mpa
(4)gasket coefficient: m=4.25
(5)max. Machinable size: ~2800mm
standard:hg20611,hg20632,gbt19066etc.contact us with the specific sizes.
Corrugated could be used in stainless flange and stainless equipment.
welcome to send us inquire and feel free to contact us if you have any problem.
