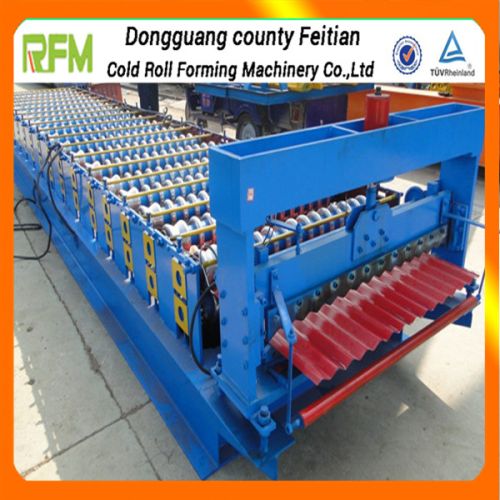

Corrugated Roll Forming Machine, Brand Name : RFM

We are offering corrugated roll forming machine.
1. Profile
1.1 coil material：metal steel
1.2 coil material thickness：0.3mm- 0.8mm
2. Process flow de-coiling--feeding---forming---cutting---production
3. manual de-coiler 3.1 outside diameter of coil is 1500 mm
3.2 inside diameter coil is 450 - 550 mm
3.3 coil width is 1250 mm
3.4 coil load 5 ton
4 forming device 4.1 shaft material: 45# steel, outer diameter 70mm
4.2 roller material: #45 steel
4.3 number of forming step: 11 steps
4.4 chains transport
4.5 forming speed ：8-10mmin
4.6 main motor power：3kw
4.7 voltage: 380v 50hz three-phase (as customer’s request)
4.8 dimension: 6.2*1.45*1.5
4.9 weight: 3t
5. hydraulic cutting device 5.1 hydraulic station：1set
5.2 with hydraulic station, motor 3 kw
5.3 cutting press 20 ton
5.4 hydraulic cutter
5.5 blade material: cr12 steel with quenched treated 60-62℃
5.6 cutting system: advanced hydraulic drive, automatic cutting after
forming, no distorting or wasting, high level safety factor.
6.controlling
device 6.1 screen: delta touch screen
6.2 plc: delta
6.3 automatic length measurement
6.4 automatic quantity measurement
6.5 computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved
6.6 length inaccuracy can be amended easily
