Corrugated Roof Board Roll Forming Machine, Packaging Type : blue

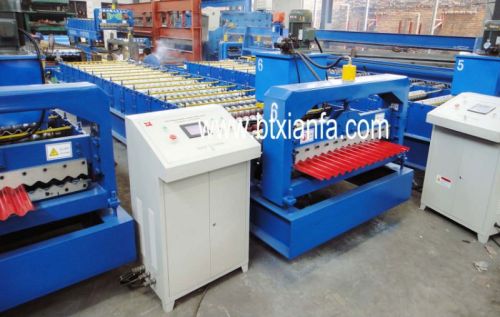

Corrugated Roof board Roll Forming Machine
Parameter:
1. Suitable to process: Colored Steel plate, galvanized board
2. Width of the plate: 1220mm
3. Rollers: 15 rows
4. Rolling material: Forging Steel 45#
5. Rolling galvanization thickness: 0.05 mm
6. Material of the cutting blade: Cr12
7. Hydraulic oil: 40#
8. Dimensions: 7.5*1.55*1.51m
9. Power: 4+4kw
10. Thickness of the plate:0.3-0.6mm
11. Productivity: 8-10m/min
12. Diameter of the roller: 70mm
13. Weight: About 4.1 T
14. Voltage: 380V 50Hz
15. Processing precision: within 1.00mm
16. Transportation: one complete equipment need one 40 feet container to hold
17. Payment terms: 30%deposit,and balance before delivery
18. Equipment components: Man-made uncoiler--Roll forming machine--computer control system-- hydraulic control system--cutting
19. Standard components: Chain 1 pc, Hydraulic oil pipes: 2 pcs, electromagnetism valves 1 pcs.
imit switch:2 pcs
20. This type of sheet can be widely used in plant, house, storage and simple steel roof and wall as
the corrugated arch sheet. It has advantage of pretty appearance, durable using and so on.
