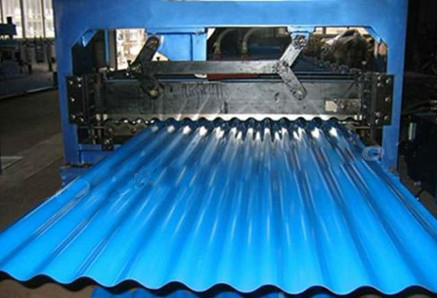

Corrugated Roof Sheet Forming Machine

₹ 8.01 Lakh / 15000 15000 Set

MOQ1 Set(s)
speed 8-10m/min
material of rollerscast iron
material width 1250mm
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering Corrugated Roof Sheet Forming Machine. material of rollers: cast iron main motor power: 4 kw the forming speed: 8-10m/min the plating chromium’s thickness on the surface of....

Company Information

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2008

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering Corrugated Roof Sheet Forming Machine.
material of rollers: cast iron
main motor power: 4 kw
the forming speed: 8-10m/min
the plating chromium’s thickness on the surface of rollers: 0.05mm
material width: 1250mm thickness of the steel: 0.3-0.7 mm
effective width after forming: 1064mm
chains:1 inch
main stand:350# h steel wall plate thickness:
14mm
dimension of the machine: 6mx1.5mx1.2m
weight of the machine: 3700kg
hydraulic cutter
material of blade: cr12 mould steel with quenched treatment 60-62
cutting system: adopt advanced hydraulic drive, automatically cutting after forming, no distort, no wasting, high safe factor.
the electrical control system (with transducer)
display: textscr delta plc with transducer（keep tolerance within±2mm）
• encoder: “rui pu” or “xin ya” (wu xi)
• frequency converter: “sanjing” (guang zhou )
• controlling screen : liquid crystal display(text panel)
• electric relay : delixi jqx-13f2z
• circuit breaker : delixi
hydraulic system
adopting advanced hydraulic system
power: 3 kw
