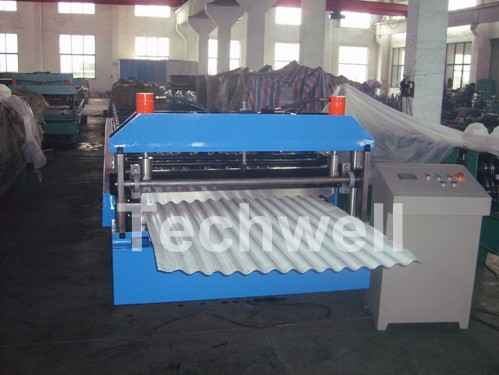

Corrugated Sheet, Roll Forming Machine

We are offering corrugated sheet, roll forming machine.
Machine: tw-6001 corrugated sheet roll forming machine,corrugated roll forming machine, corrugated roof panel machine, corrugated roof sheet forming machine
a.main technical parameter
1.manual decoiler:manual expansing,passive uncoil
2.weight capacity of deociler:5t
3.machine stand:welded structure steel
4.type of forming machine:single station with chain transmission
5.material of roller:high grade 45 steel
6.surface of roller coated with chrome 0.05mm thickness
7.type of cutting:hydraulic cutting
8.material of blade:cr12
9.heat treatment of cutting blade:hrc58-60
10.transducer:abb
11.computer adopt plc control,mitsubishi
b.technical process:
manual decoiler---feed with guide---roll forming---cut with fixed length---output with table
c.equipment
manual decoiler,main roll forming machine,hydraulic cutting device,hydraulic station,plc computer control,output table
our main machine:
roll forming machine, eps / rock wool / glass wool / mineral wool / pu sandwich panel machine line, roof tile roll forming machine, hidden-joint roof tile roll forming machine, wall panel roll forming machine, hidden-joint wall panel roll forming machine, glazed tile roll forming machine, corrugated sheet roll forming machine, double layer roll forming machine, c / z / u / w shape purlin roll forming machine, ridge cap roll forming machine, highway guardrail roll forming machine, downpipe roll forming machine, door frame forming machine, light steel keel roll forming machine, u channel roll forming machien, furring channel roll forming machine, no-girder curve roof panel forming machine, k-span roll forming machine, large-span curve roof panel roll forming machine, roller shutter door forming machine, crimped / corrugated curving machine, curving machine, hydraulic shearing machine, metal sheet folding machine.
