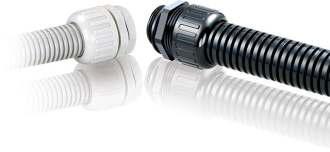

Corrugated Tubing Fitting

We are offering corrugated tubing fitting.
• thread type :metric and pg.
• material data :halogen-free nylon pa 66 ( flammability ul 94v-2 ) for a.c.f parts.weather-resistant epdm rubbers for b.d parts. ( nbr rubber is optional for oil-resistance applications )our black fittings are suitable for outdoor use have been subjected to uv light exposure and water immersion same as ul746c (f1) rating.uv ( irradiance 340 nm ) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.
• ip protection :ip68.
• working temp:- 40 °c to 105 °c ( - 40 °f to 221 °f ). Short-term to 160 °c ( 320 °f ).
• application :with yongcun’s special sealing design containing an unique integrated insert, the powerful watertight fittings build the best tightening power by a very high & active compression force to resist the ingress of high pressure water jet from any angle which can provide 100% dynamic waterproofand airtight performance over the widest range of corrugated tubings ( o.d. ّ10 mm - ّ89 mm ). These powerful watertight fittings are widely applied to resist water impact or immersion as a tough cable protection system for any machines, devices and equipments with the very specific demands.
