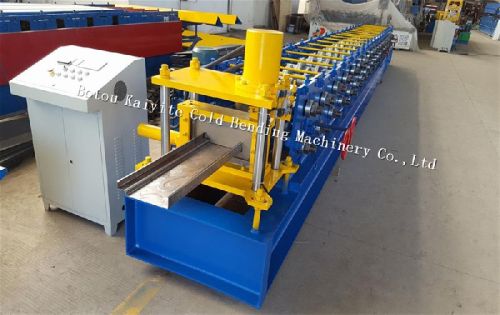

Costom Embossing Window And Door Frame Machine

Costom Embossing Window And Door Frame Machine Costom Embossing Window And Door Frame Machine is used to produced steel door or window frame. In actually, the door frame or window frame is a channel which can fix the door or window with the wall closely to make the door and window embed in the wall very strongly. With the door frame, your door will more strong and your house will be more fastness. It can protect your family and propert well, so your family will have a safity home with it. That is also why so many people is widly used in shop, warehouse and so on.  1. Machine Parameter 1.1 Raw Material A. Suitable Material: Colored Steel Plate, Galvanized Board, Aluminum Plate; B. Width of the raw material: 210330350 mm; C. Thickness: 0.8mm - 1.5mm; 1.2 Main Body A. Roller station: 18 rows; B. Diameter of shaft: ￠80mm, 45# steel; C. Roller material: 45# steel; D. Frame: 350 H steel; E. Operate: Manual and Automatic; F. Working speed: 8 - 10 mmin; G. Size (L*W*H): about 8600*1250*1600 mm; 1.3 Power A. Motor power: 5.5 Kw,  Hydraulic power: 4 Kw; B. Voltage: 380V 50Hz 3Phases or Customization; C. Driving way: 1.5 inch Chain 3. Components of machine *   Manual Deciler......................................1 Unit *   Feeding Table and Leveling Device....................1 Unit *   Main roll forming system.............................1 Unit *   Hydraulic system..................................1 Unit *
