(Coulometry) Sulfur Content Analyzer

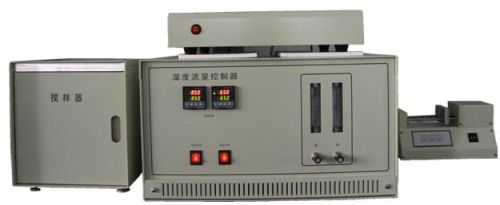

FDR-3105 (Coulometry) sulfur content analyzer

Scope

Coulometry sulfur measurement instrument micro coulometry principle, when the sample combustion redox reaction in the cracking tube, the carrier gas into the titration cell, and with I3- or Ag + reacts by measuring the electrolytic titration The consumption of electricity, according to Faraday's law, to obtain the total sulfur or total chlorine content of the sample.

Features

1, the instrument uses the Windows operating platform, English interface

2, the computer controls the entire analysis, data processing and other processes, show the whole process of working condition, may be needed parameters, save or print the results

3, the international fashion circuit and instrument uses imported components, reducing equipment noise and improve the detection sensitivity, reliable performance

4, instrument measurements accurate and stable.

Technical Parameters

1, measuring range: sulfur 0.1mg / L ~ 10000mg / L ~ percentage

Chlorine 0.3mg / L ~ 10000mg / L ~ percentage

2, the sample states: solid, liquid, gas (matching the corresponding injector).

3, temperature range: room temperature ~ 1000 ℃ ± 3 ℃

4, repeatability error: X 10mg / L Cv≤5%
