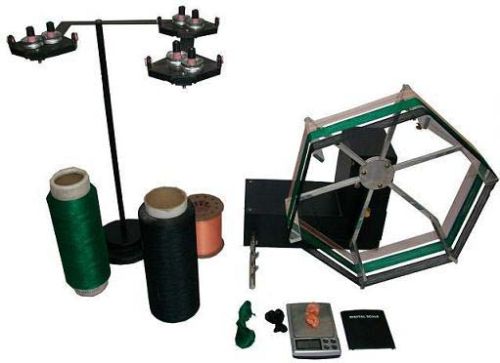

Count Wrap Reel

Count Wrap Reel is a Automatic Wrap Reel used to prepare 6 lea for checking the denier and count of yarn, etc. Count Wrap Reel is used to prepare 6 lea for rapid preparation of accurate lengths of yarn, in hank form, for subsequent weighing and determination of count and strength of the yarn.
Count Wrap Reel manufactured at B-Tex Engineering is finest quality yet affordable.
Count Wrap Reel is a precision made, robust and reliable reading machine which is used for rapid preparation of accurate lengths of yarn, in hank form, for subsequent weighing and determination of count and strength of the yarn. It gives accurate and perfect result of final count/denier of the yarn sample/specimen.
Features of Count Wrap Reel:
â€Â¢ The equipment consists of solidly constructed swift/wheel.
â€Â¢ It has traverse mechanism.
â€Â¢ Wrap reel is fitted with a digital counter.
â€Â¢ It is powered by a special geared motor.
â€Â¢ It is automatic.
Specifications of Count Wrap Reel:
Swift Perimeter : 1.5 yards
Number of leas made at a time : 6
Spread of each lea : 20 mm
Overall Dimensions of the main Unit : 450mm (L), 260mm (W), 360mm (H).
Net Weight of the main Unit : 20.000 Kg.
Overall Dimensions of the cone Unit : 280mm x 260mm x 500mm
Net Weight of the cone Unit : 10.000 Kgs (approx.).
Controls : MAIN, ZERO/RESET.
How Count Wrap Reel Works?
â€Â¢ Bobbins/Yarn Cones are placed on the Yarn Cone Stand.
â€Â¢ The end of the yarn has to be passed through the Tensioning Device into the ceramic eyelids, through to the ceramic pigtail and finally onto the plate with screw heads. The free end of the yarn has to be tied on the screw head by making few rounds.
â€Â¢ The main is put on and start the wrap reel, mechanical counter shows rotations, switch off to stop reel after desired numbers of rotation.
â€Â¢ The free end of each of the Leas has to be united with the other end of the same Leas. The Bobbin side near the knot has to be cut.
â€Â¢ The collapsible mechanism is lowered in the swift/wheel.
