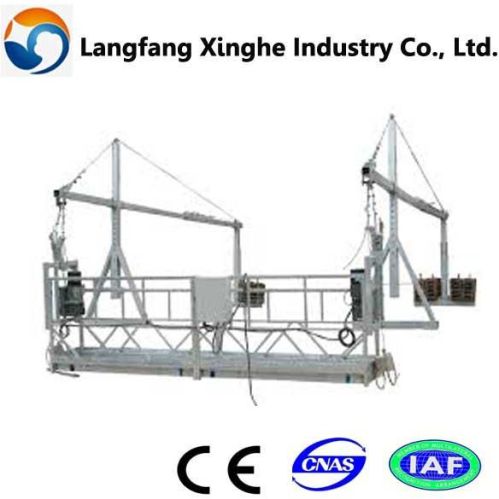

Counter Weight Suspended System

₹ 1.54 Lakh / 2500 2500 Set

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering counter weight suspended system. Finished hot galvanizing aluminum alloy rated load 630kg 800 kg lifting speed 9~11mmin 7~9mmin platform dimension l*w*h(mm) ....

Company Information

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 1980

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering counter weight suspended system. Finished hot galvanizing aluminum alloy
rated load 630kg 800 kg
lifting speed 9~11mmin 7~9mmin
platform dimension l*w*h(mm) (3*2000mm)*690mm*1150mm(3*2500mm)*690mm*1150mm
lifting height 100m
diameter of wire rope 8.3mm8.6mm
power 2*1.5kw2*2.0kw
voltage 380v415v
rated stretch of the front beam: 1500mm
rated suspending load: 8kn*2
the distance between suspending beam and ground: 1200mm
the max distance between front support and the rear one: 4500mm
adjustment range of height :1150~1800mm
arm can be stretched out and drawn back
it can be used for parapet and complicated building in different height.
Based on the special working environment, we can supply customized platform

Additional Information

Payment Terms L/CT/T
Port of DispatchTianjin
Packaging DetailsStandard exporting package by plywood case,then steel pallet for container
Delivery Time7~10 days after receiving the deposit
