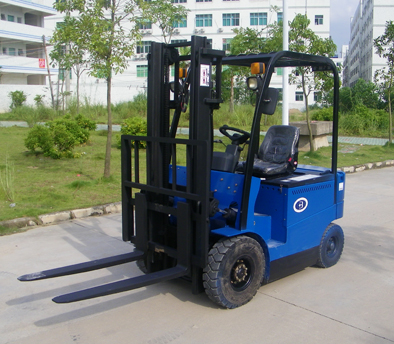

Counterbalanced Electric Forklift

Cpd series battery ac/dc forklift features and applicability description.
1.cpd series battery forklift is the third generation science and technology products. Widely used in factories,station,wharf,warehouse and other no-explosive workplaces cargo handling,stacking cargo and short distance transport;
2.the forklift move by battery,dc/ac motor drive, the main advantages including low-noise,pollution-free,turning light and flexible,quick start braking,easy manipulation and maintenance.
3.configuration voltage converter(dc-dc), balanced use battery to extended battery life.double pump in one hydraulic power steering,forward and back using high-efficiency electronic teering,easy manipulation,effort-saving.using america curtis series excitation controller, chopper stepless speed regulation,mature technology,stable performance. Regenerative braking can extends 5%-10% of the time,at the same time reducing wear and tear of mechanical brake. Double row of gear low-noise gear pump, in order to reduce the noise. Ergonomic design improves comfort of the driver’s operation. The product has good performance of braking system.
specification:
nominal load capacity: 1000~5000kg
load center distance : 500mm
hoisting height: 3000mm
goods fork: 1070*100*40mm
maximum speed: 11/10km/h
maximum lift speed(empty/carry): 400/270 mm/s
maximum climbing ability: 12/10 %
vehicle length: 3275mm
vehicle width: 1150mm
vehicle height: 2200mm
minimum turning radius: 2050mm
wheelbase: 1500mm
the distance between two wheels: 960/950mm
minimum ground clearance: 115mm
motor power(walk/lifting): 6.5/8.6kw
front wheel: 7.00-12
the rear wheels:18*7-8
battery pack: 48/630 v/a.h
weight: 4100kg
