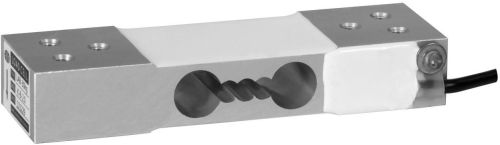

LCT Counting Scale Load Cell

We are offering counting scale load cell.
Features
material:aluminum alloy
mainly used for price computing scales,counting scales,weighing scales etc.
Max.platform size:250*350mm
2、specifications
rated loading:20kg~100kg
dimension:22*38*130mm
rated output:2.0mvv±10%
zero balance:±0.05r.o.
non-linearity:±0.015%r.o.
hysteresis,repeatability:±0.01%r.o.
creep in 30 min.:±0.02%r.o.
temp.effect on output:±0.02%r.o.10℃
temp.effect on zero:±0.02%r.o.10℃
input resistance:405±10ω
output resistance;350±3ω
safe overload;150%r.c.
insulation resistance:≥5000mω
compensated temp. Range:-10to+40℃
operating temp. Range:-20to+60℃
excitaction,recommended:5-12vdc
excitation,maximum:18vdc
cable,length:φ4mm*0.4m.
