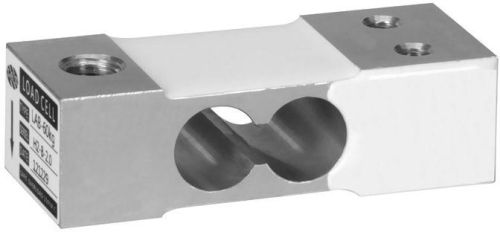

LCT Counting Scale Load Cell

We are offering counting scale load cell.
features
material:aluminum alloy
cost-effective
mainly used for price computing scales,counting scales,weighing scales etc.
max.platform size:250*350mm
2、specifications
rated capacity:20,40,60,100,200kg
dimension:22*30*75mm
rated output:2.0mvv±10%
zero balance:±0.05r.o.
non-linearity:±0.02%r.o.
hysteresis,repeatability:±0.015%r.o.
creep in 30 min.:±0.03%r.o.
temp.effect on output:±0.03%r.o.10℃
temp.effect on zero:±0.05%r.o.10℃
input resistance :405±10ω
output resistance:350±3ω
safe overload:150%r.c.
insulation resistance:≥2000mω
compensated temp.range:-10to+40℃
opearting temp.range:-20to+60℃
excitation,recommended:5~12vdc
excitation,maximum:18vdc
cable,length:φ4mm*40cm.
