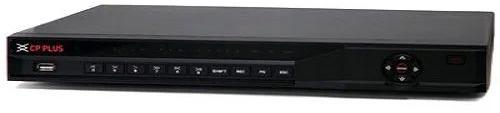

CP-UVR-3201LE2-I 32 Channels Digital Video Recorder

₹ 8,400 - ₹ 14,900 / Piece

MOQ5 Piece
Brand NameCP Plus
Display TypeDigital
Power SourceElectric
ApplicationVideo Recording
Supply TypeSupplier
Preferred Buyer Location All over the world

Technical Specification

Processor	Industrial-grade processor
Operating System	Embedded LINUX
IP Camera Input	Up to 16 channels of IPC access 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
Two-way Talk	Yes (share the same audio input with the first channel)
User Interface	GUI
Video Output	1 HDMI, 1 VGA
Video Resolution	VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
Video Recording	Main Stream: the 1st channel 1080N/720P (1 fps–25/30 fps), others 1080N/720P (1 fps–15 fps); 960H/D1/CIF (1 fps–25/30 fps) Sub stream: CIF (1 fps–7 fps)
Video Compression	AI Instastream/Instastream/H.265/H.264+/H.264
Video Display Split	1/4/8/9/16/25/36
Video Channel	16 channels, BNC
Audio Compression	G.711A, G.711U, PCM
Audio Output	1 channel, RCA
Audio Input	1-channel RCA (external) 32-channel BNC (coaxial audio)
Motion Detection	MD Zones: 396 (22 × 18)
Video Loss	Supports
Smart Phone	iPhone, iPad, Android Phone
Hard Disk	2 SATA ports, up to 16TB Each, the maximum HDD capacity varies with environment temperature
Bit Rate	32 Kbps–6144 Kbps Per Channel
Recording Mode	General, motion detection; intelligent; alarm
Backup Mode	USB Device/Network
Playback	Instant playback, general playback, event playback, tag playback, smart playback
Ethernet	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Interface Ports	2 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS485 Port
Protocols	HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; InstaOn, ONVIF 21.06, CGI
Power Supply	DC 12V/4A
Power Consumption	Lower than 12 W (without HDD)
Working Temp	-10°C to +55°C (+14°F to +131°F), 0–90% RH
Dimension	375.0 mm × 289.4 mm × 53.0 mm (W × D × H)
Weight	1.92 kg
