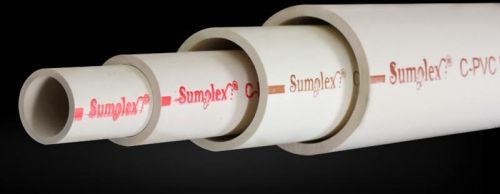

CPVC Pipes

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Our CPVC Pipes are manufactured to facilitate easy water supply. The CPVC Pipes, we offer are resistant to chemicals and harsh condition. We offer reliable CPVC Pipes, manufactured using the superior quality CPVC. Our CPVC Pipes ensures constant and pure supply of water for a longer period of time. Highlights Resistant to high and cold temperaturesLeak proofAvailable in different thickness optionsStandard dimensions

View More Details

Send Enquiry

Product Details

CPVC Pipes In SDR 11.5

ASTM D–2846 Standard Dimensions

Nominal Bore		Nominal Outerside Diameter		Wall Thickness		Working Pressure
(Inch)	(mm)	(In)	(mm)	(Min)	(Max)	(23 ^oC) Kg/Cm2	(82 ^oC) Kg/Cm2
3/4	20	0.88	22.2	2	2.5	28.1	7
1	25	1.13	28.6	2.6	3.1	28.1	7
1 ¼	32	1.38	34.9	3.1	3.7	28.1	7
1 ½	40	1.63	41.3	3.8	4.3	28.1	7
2	50	2.13	54	4.9	5.5	28.1	7

Download Detail File : Click Here

CPVC Pipes In SDR 13.5

ASTM D–2846 Standard Dimensions

Nominal Bore		Nominal Outerside Diameter		Wall Thickness		Working Pressure
(Inch)	(mm)	(In)	(mm)	(Min)	(Max)	(23 ^oC) Kg/Cm2	(82 ^oC) Kg/Cm2
3/4	20	0.88	22.2	1.7	2.2	22.5	5.6
1	25	1.13	28.6	2.1	2.6	22.5	5.6
1 ¼	32	1.38	34.9	2.6	3.1	22.5	5.6
1 ½	40	1.63	41.3	3.1	3.6	22.5	5.6
2	50	2.13	54	4	4.6	22.5	5.6
