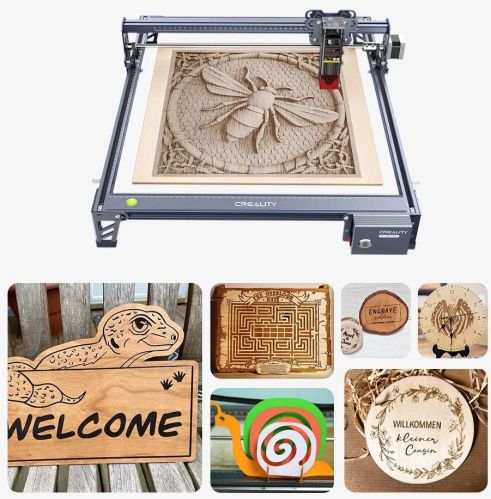

CR Falcon 10w Laser Engraver Cutter Machine

₹ 34,749 / piece

Driven TypeElectric
ApplicationFor Engraving
Supply TypeExporter, Supplier, Retailer, Distributor, Importer, Trader
Preferred Buyer Location All over the world

0.06mm Compressed Spot for Engraving: The improved 6 lens array compresses the focal spot to only 0.06mm. It will deliver more details in your engravings. Stronger to Cut and Engrave: Enhanced 10W....

Company Information

Member Since 1 Year
Nature of Business Exporter
GST No. 19CFOPM2078H1ZY

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

0.06mm Compressed Spot for Engraving: The improved 6 lens array compresses the focal spot to only 0.06mm. It will deliver more details in your engravings.
Stronger to Cut and Engrave: Enhanced 10W laser, easier to cut through thicker materials. It engraves obvious patterns on objects as hard as stainless steel.
One-button Operation: In the offline working state, a single button to preview, start, pause or stop engraving. The integrated LED indicator will signal the status clearly.
3 Steps Focusing: Loosen the laser module screw, slide the module, until its protective cover touches the focus block, and tighten the screw.
Quick to Assemble: 60% of the components are modularized for easier assembly.
Offline Engraving: Import a file via a TF card. Use it indoors, outdoors or anywhere you like without connection with a computer.
Larger Workspace: With 400×415 workspace, it allows users to process a larger piece of material at a time.(Optional raisers)
Able to Engrave and Cut Various Materials: Flexible materials: paper, cloth, leather, fabrics, etc. Materials of average hardness: wood, bamboo, acrylics, ceramics, etc. Materials of high hardness: matte stainless steel, painted metal surface, anodized surface, dark metal surface, etc.
Extensive Compatibility: Software: LightBurn, LaserGRBL File Format: SVG/PNG/DX/TIF/BMP/PDF/NG Operating System: Mac OS/Windows
Leading in Motion Stability-oriented drive: 32-bit chip, silent mainboard and self-developed algorithm to drive the steppers in x and y axis precisely, synchronously and quietly.
Stable and robust structure: 8mm shaft instead of the ordinary 6mm shaft, and L-shaped anti-slip rubber tripods, enhancing stability in the structure.

Detail

Spot Size :	0.06 mm
Cutting Thickness :	0-18 mm
Optical Power :	10W
Engraving Speed :	Max. 10000 mm/min
Light Source :	Semiconductor Laser
Output Voltage :	DC 24.0V 3.0A
Engraving Depth :	0-10 mm
Laser Wavelength :	455 nm
Engraving Precision :	254 dpi
Engraving Area :	400*415 mm
Input Voltage :	100-240 V 50-60 Hz
Slicing File Format :	svg.png.jpg, jpeg,bmp, dxf
Support OS :	Windows / Macos
Engraving File Format :	.gcode (after slicing)
Slicing Software :	LaserGRBL, LightBurn
Applicable Materials :	Cardboard, Wood, Bamboo clappers, Rubber plate, Leather, Fabric, Acrylic, Plastic, Metal
