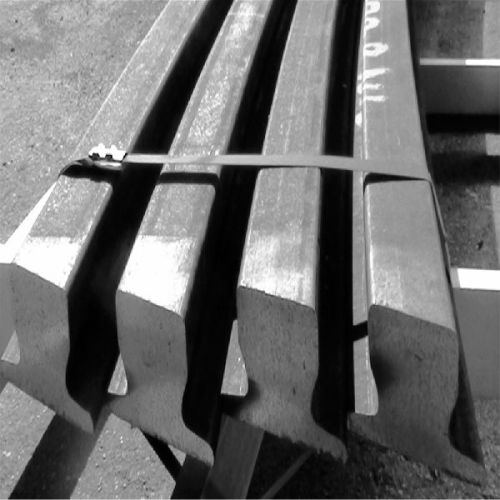

Crane Guide Rail Steel Rail

Crane Guide Rail Steel Rail Product Description Introduction of Railway Steel Rail 6kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, Light Rail, Heavy Rail, Crane Rail 1. Light rail: Size: 6kg, 9kg, 12kg, 15kg, 22kg, 30kg, 8kg, 18kg, 24kg material: 55q/Q235B standard: GB11264-89 standard, yb222-63 standardlength: 6-12m2. Heavy rail: Size: 38kg, 43kg, 50kgmaterial: 50mn/u71mn standard: GB2585-2007length: 12.5-25m3. Crane rail: Size: Qu70, qu80, qu100, qu120 material: U71mn standard: Yb/t5055-93 standardlength: 12mParameters of Railway Steel Rail 6kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, Light Rail, Heavy Rail, Crane Rail STANDARD  LIGHT  RAIL SIZE DIMENSION  (MM) WEIGHT(KG/M) MATERIAL LENGTH(M)   HEADA(MM) HEIGHTB(MM) BASEC(MM) WEBD(MM)                       GB  6KG 25.4 50.8 50.8 4.76 5.98 Q235B   6-12 GB  9KG 32.1 63.5 63.5 5.9 8.94 Q235B   6-12 GB  12KG 38.1 69.85 69.85 7.54 12.2 Q235B/55Q   6-12 GB  15KG 42.86 79.37 79.37 8.33 15.2 Q235B/55Q   6-12 GB  22KG 50.3 93.66 93.66 10.72 22.3 Q235B/55Q   6-12 GB  30KG 60.33 107.95 107.95 12.3 30.1 Q235B/55Q   6-12 GB2585-2007  STANDARD  HEAVY  RAIL SIZE DIMENSION  (MM) WEIGHT(KG/M) MATERIAL LENGTH (M)     HEAD   A  (MM) HEIGHT   B  (MM)   BASE   C  (MM) WEB       D  (MM)
