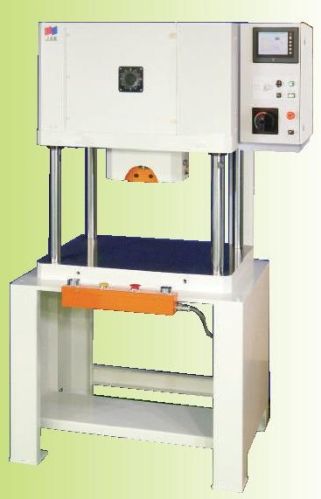

CRANK SERVO PRESS

●This post type frame structure is excellent in the rigidity and exercises to highly accurate processing. Wide bolster area is enough to correspond to a large-scale of mold and owns the high flexibility to adapt to various peripheral devices, like a feeder. And also it is able to use partially of the automation line.

● RAM (Slide) can be synchronized with the peripherals by an arbitrary out- put signal.

● Press Capacity : 49 kN

● Activating Point : 1.2mm

● Stroke Length : MAX. 40mm

● No. of Stroke : MAX. 130 S.P.M

● Open Height : 300mm

● Die Height : 260mm

● Shank Hole : Dia25 X 50L

● Max. Upper Die Mass : 20Kgs

● Adjustment : 25mm

● Power Supply : Three Phase 200VAC,50A, 50/60Hz
