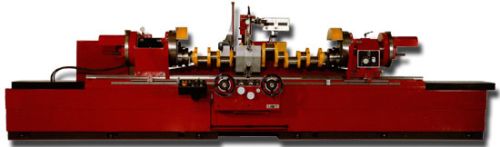

Crankshaft Grinder

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Features :Mech / Hydraulic driven machine with double 4 jaws independent chuck adjustable for main and big-end grinding. Available in various length from 1500 mm to 3500 mm, with coolant pumps & autofeed.

View More Details

Send Enquiry

Company Information

Al Gouri Machinery Trading L.L.C.

Dubai

View Number

Member Since 10 Years
Nature of Business Supplier

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MODEL	CRG 48	CRG 60	CRG 84	CRG 90	CRG 120
Max distance between center	1200	1500	2000	2250	3000
Max distance between chucks	1150	1450	2050	2235	2950
Swing over table	492	492	575	711	775
Max weight of shaft	60 kg	120 kg	210 kg	340 kg	1000 kg
Height from floor to spindle centre	1125	1125	1125	1220	1220
Work head spindle	30-45-68	27-41-61	27-42-65	27-41-61	22-35-50-60
Max offset of centres	88	115, 112	138	155	165
Grinding wheel speed	1050 RPM	900 RPM	800 RPM	800 RPM	600 RPM
Table travel rapid	22	22	22	22	22
Table travel slow	0.75	0.75	0.75	0.75	0.75
Grinding wheel dia x width x center hole	650 x 22 x 152.4	650 x 22 x 203.2	750 x 25.4 x 203	800 x 25.4 x 203	900 x 25.4 x 300
Work head spindle dia.	62	62	72	72	87.5
Tail stock spindle travel	75	75	75	75	75
Wheel head motor	3 HP	5 HP	7.5 HP	7.5 HP	10 HP
Work head motor	1 HP	1 HP	1 HP	1 HP	2 HP
Main slide auto motor	1 HP	1 HP	1 HP	1 HP	2 HP
Grinding wheel auto motor	1 HP	1 HP	1 HP	1 HP	2 HP
Coolant pump moter	0.1 Hp	0.1 HP	0.1 HP	0.1 HP	0.1 HP
