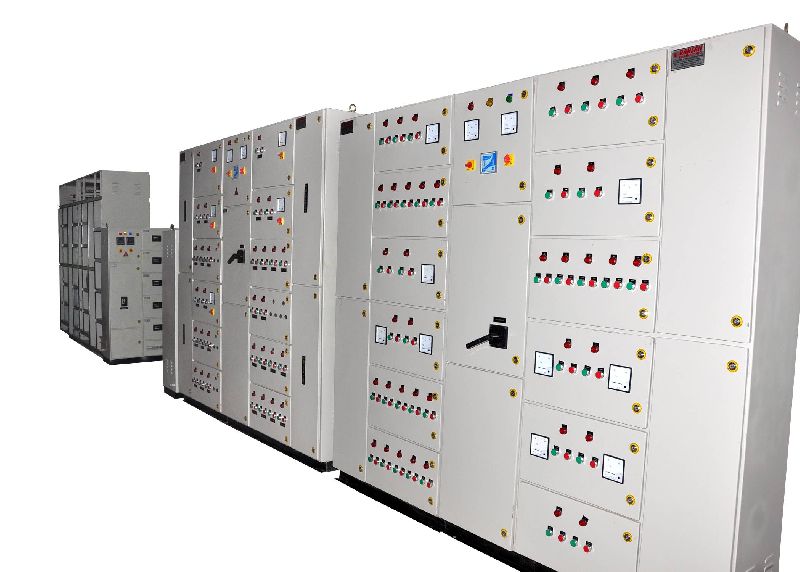

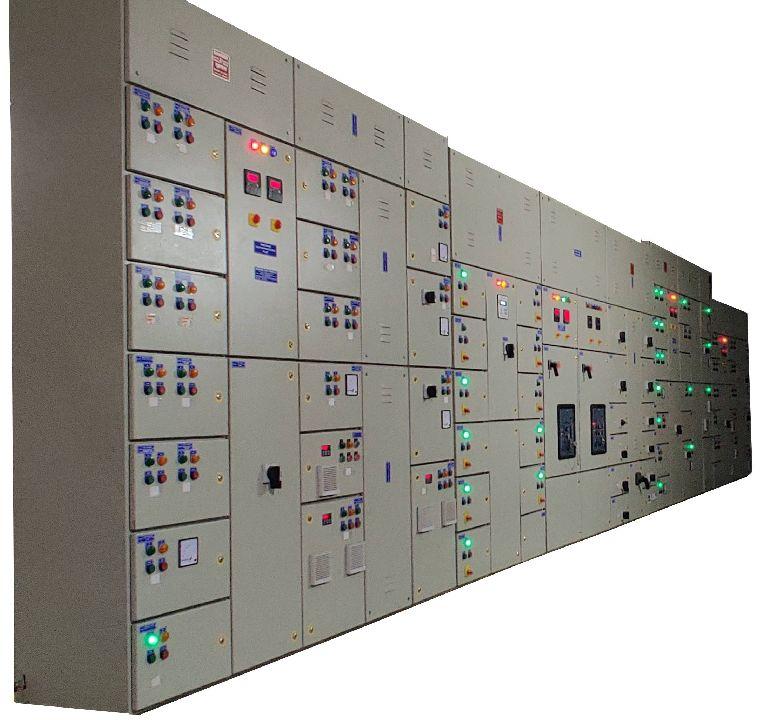

MCC Panel ( Motor Control Center Panel)

We manufacture Motor Control Centers (MCC) Panels that are designed for the distribution of power, main incoming, and motor control panels. These MCC Panels are designed with utmost care and stringent quality inspection to ensure customer satisfaction.

The Motor Control Center (MCC) is the central location for controlling electric motors. A special instrument called a motor control panel is used to control motors in most industries. In many commercial & Industry applications multiple electric motors are required and it is often desirable to control some of the motors.

We are manufacturing the MCC Panel with a high standard of quality and reliability. As a result, LT panels are designed with rated current ranging from 100A to 6300A and up to 80KA fault levels.

All the Panels with metal clad, totally enclosed, floor mounted, air-insulated, cubical type suitable for operation on three-phase / single phase,415 or 230 volts, 50 Hz. The panels will be designed for the minimum expected ambient temperature of 45 degrees C.

Features:

Modular / Non- compartmentalized construction.

Panel structure with MS CRCA/SS.

Indoor / Outdoor type Structure.

Single front/double front Operated.

Provision for Extensible for future use.

Provision of Rubber Gaskets to meet IP requirements like IP-42/52/54/55/65.

Arrangement for heat dissipation by means of Exhaust Fan or Lowers.

Applications of MCC Panels.

• Automobile Industries.
• Metal Industries.
• Pharmaceutical Industries.
• Cement Industries.
• Chemical Plants.
• Windmills & Power Stations.
• Textile Machinery.
• Printing Industries.
• Hospitals, Malls, Banks, and IT Parks.
• Commercial Complexes.
• Food Processing Plants.
• Steel Rolling Mills.
• Sugar Plant.

Specification:

• Rating: 100 - 6300A
• Fault Level: up to 80kA
• Operational Voltage: 230 / 415V AC
• Rated Insulation Voltage: 690V
• Frequency: 50Hz
• Ambient Temperature: 45 Degree C.
• Degree of protection: IP55
