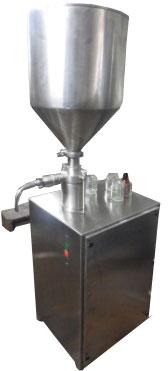

Cream Filling Machine / Tomato Sauce Filling Machine

Most suitable for to fill tube, container, bottle, cans. etc. in the high range of 5,10,30, 50,100,250,500, 1000 gms per stroke can be used for paste, cream, ointment, jelly. High viscosity material can also fill like Chawanprash, chatni. etc
Machine is supplied with 3 sets of standard nozzle and vertical filling attachment for jars and tube with complete electric fitting including electric motor 3 Phase or single phase 1440 RPM with suitable reduction gear box. All contact part s made out of S.S.304/316 quality including syringe , piston nozzle and hopper
Operational part of M.S. Construction duly cladded/fitted with S.S.sheets

Above machine comes in 3 different models- as under

A) hopper operated :- in which hopper moves up and down and piston remains stable

B) Piston operated :- in which piston moves up and down and hopper remains stable

C) Piston with valve operated :- this machine consist of the machine body which houses a motor and reduction gear box , an adjustable stroke piston running in a stainless steel metering cylinder, a quick –acting valve and hopper. during each cycle the piaton draws out the required quantity of cream from the hopper and discharge it in to empty container.
Most suitable for filling high viscosity ,crystal material like Chawanprash and pickle can also fill.
