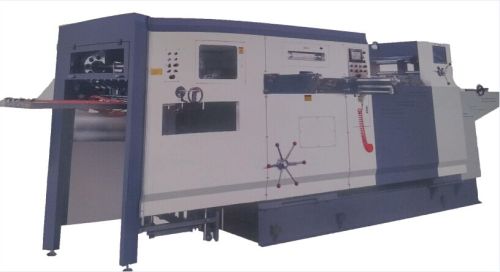

Creasing Machine

We are offering creasing machine.
Qmy series semi-auto die-cutting and creasing machine is a special equipment applying to die-cutting of advanced colored boxes made of paper.the machine combines several advantages over many other die-cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal,back and side registration mechanism ensures great precision of die-cutting.other parts are adopted such as intermittent mechanism with high precision,air clutch, pneumatic locking mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed,total running time,etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving stepless speed variation. The machine has a lot of sensors ans safe-ensuring devices to guarantee the safety to operator and the environment. Pressure is easy to be adjusted. It can also realize die-cutting without clipper margin. All these performances make the machine prominent in high quality and low price among similar products.
Model qmy-1300 qmy-1500
max.paper size 1300x960mm 1500x1100mm
min.paper size 550x500mm 650x550mm
max. Die-cutting size 1280x940mm 1480x1080mm
max. Die-cutting pressure 300ncm3 300ncm3
stock range a,b,e,c,and ab flute corrugated board(1-8.5mm thickness) a,b,e,c,and ab flute corrugated board(1-8.5mm thickness)
max. Die-cutting speed 4500 sheetsh 4500 sheetsh
max feeding pile height 1200mm 1200mm
max delivery pile height 1200mm 1200mm
total power 22kw 25kw weight 18t 25t
overall dimension :7750x4500x2250mm 10000x2650x2550mm
