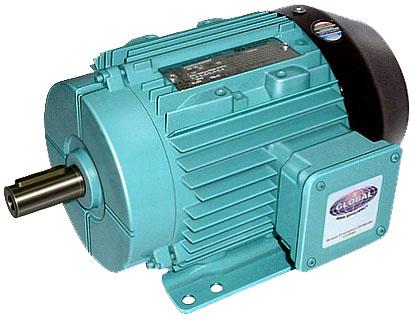

Crompton Greaves Motors

GD Series aluminum motor range covers product with output as little as 0.18kw to 11kw in frame sizes IEC63 to 132M,GD series have Multi mount facility, by simply changing the position of feet , the user is able to obtain right, left or top mounted terminal box position and by changing the standard end shield you can change it for flange or face version.

• Standard Motors are designed for foot mounting; other mountings are also available on request
• Standard Levels of enclosure protection for motor and terminal box is IP55. With IP56,IP65 and IP66 available on request
• All motors have terminal box on the top as standard. RHS/LHS terminal box can be converted simply by changing the detachable foot position..
• Standard Paint shade is RAL 5021 water blue, others are also available on request
• All motors of standard design are provided with Class F insulation with temperature rise limited to Class 'B'
  Following accessories can be offered on request.

• Thermistor
• Space Heater
• Encoder Mounting arrangement
• MS Canopy
• Double Compression Cable Glands
• Brake arrangement
