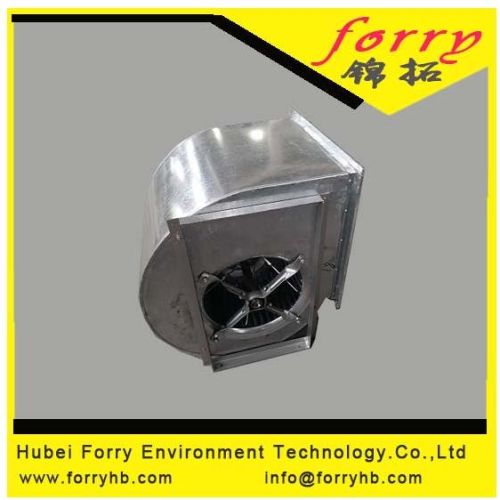

Cross Flow Blowers, Brand Name : FORRY, Certification : ce

1. Features:
High versatility, High efficiency, Low noise, With large volume
2.Application:
Ideal corollary product for central air-conditioner equipment of different specifications, heating and ventilating air conditioner, purifier, ventilator and other equipments.
3. Working Condition:
3.1 Environmental temperature: -20 to 80 °C
3.2 Particles contain in the air should not exceed 100mgm³
3.3 Air transferred should not contain any toxic, corrosive and adhesive materials
Specification sheet
Model No. Air Flow(m3h) St. Pressure (pa) Speed (rpm) Noise (dba)
160x200 160-1250 35-290 700-2000 35-60
150-150 120-800 25-260 700-2000 35-60
180-200 200-1500 35-320 700-2000 35-60
145-190 160-1200 25-250 700-2000 35-60
145-160 120-900 25-250 700-2000 35-60
160-160 160-1100 35-290 700-2000 35-60
150-200 160-1250 25-260 700-1800 35-60
double inlet centrifugal radial exhaust fan
Characteristics:
• Materials:Scroll housing and impeller made of galvanized sheet steel
• Bearing :Ball bearings
• Type of protection:IP23
• Motor insulation class:F
• Approvals:CE,AMCA
Purpose: air condition ventilation
Impeller Size: 280-1400m
Air Flow: 1000-240000m3h
Pressure: 1300pa
Drive: belt
Install: seat
