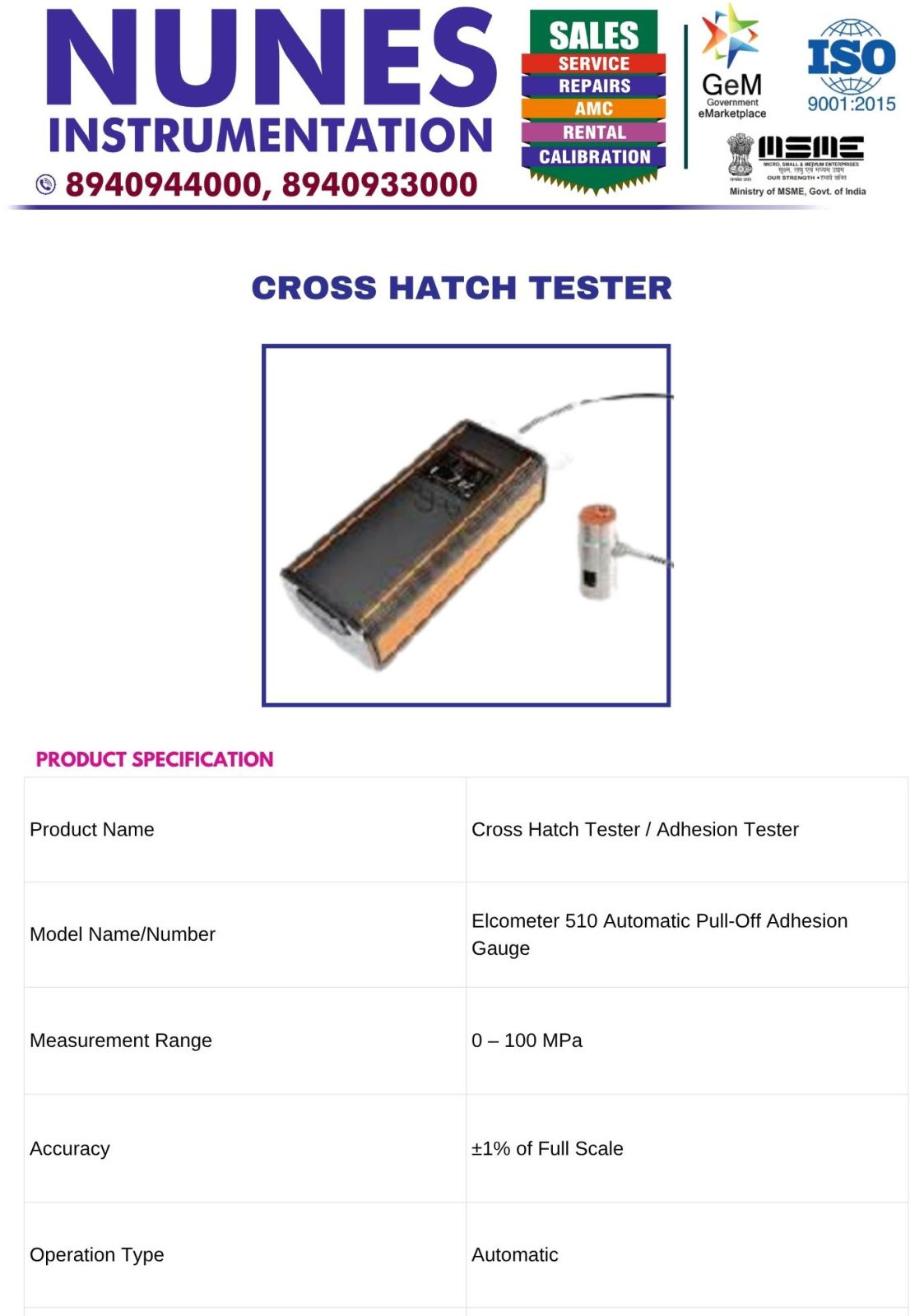

Automatic Cross Hatch Tester / Adhesion Tester, Color : Grey

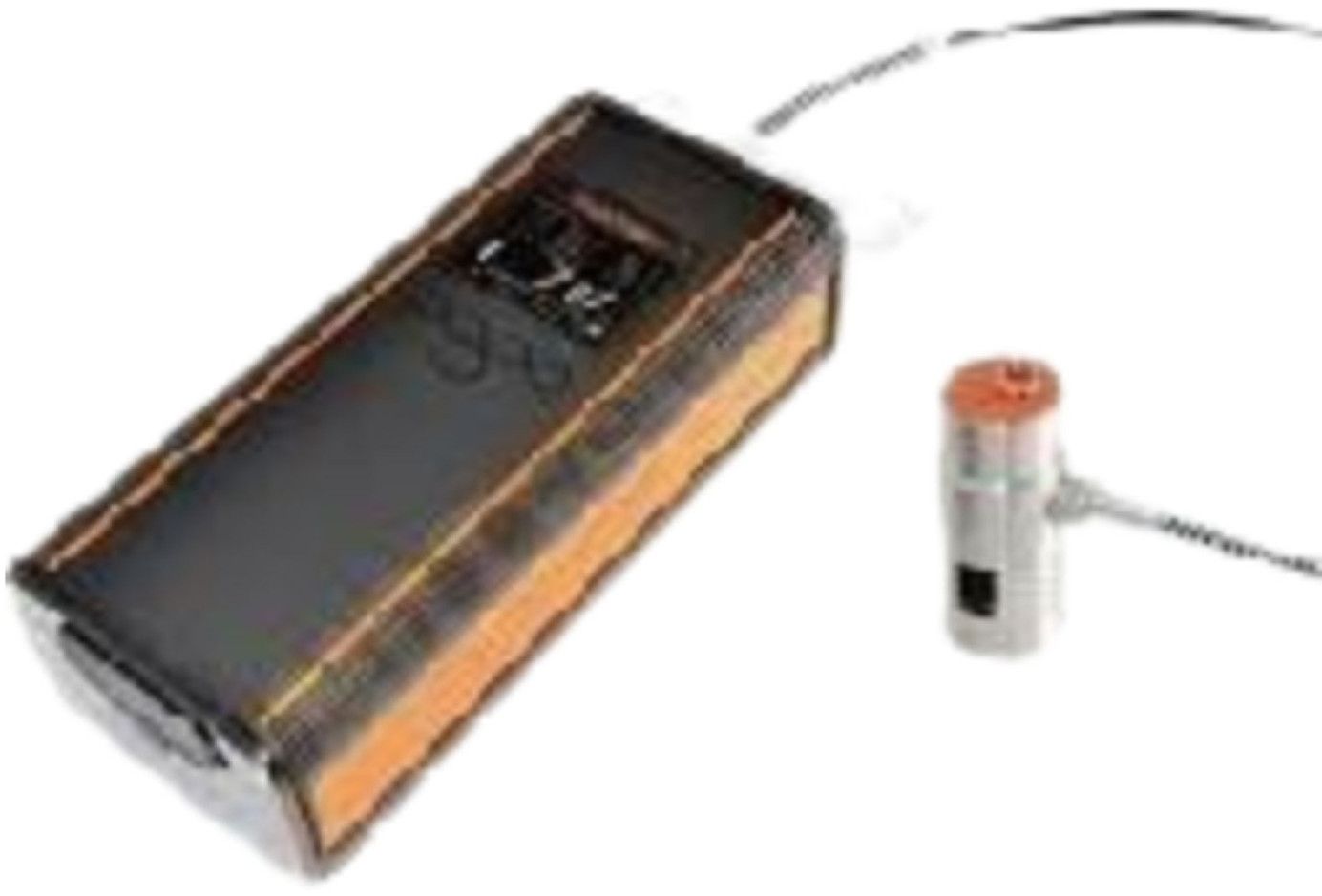

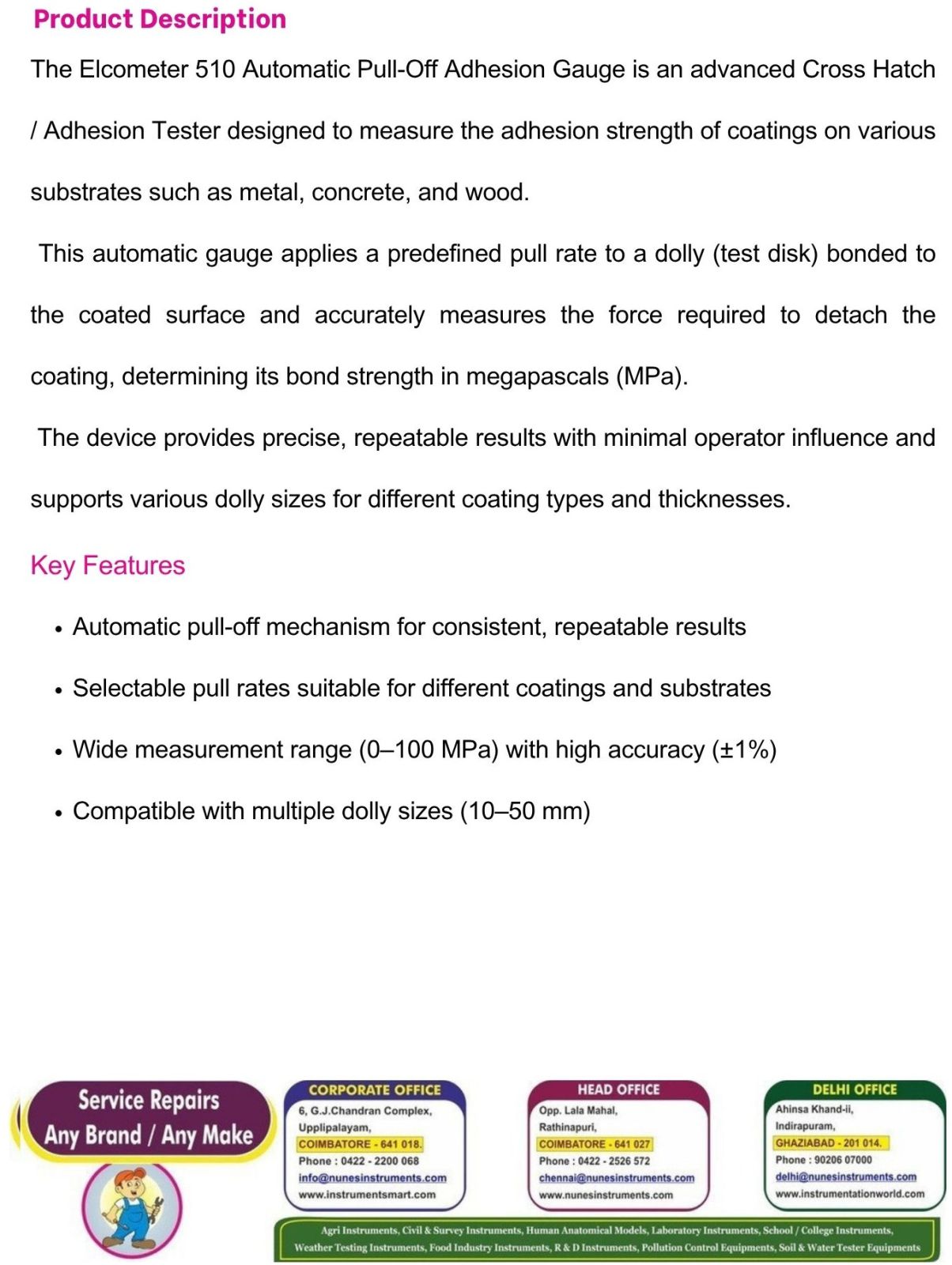

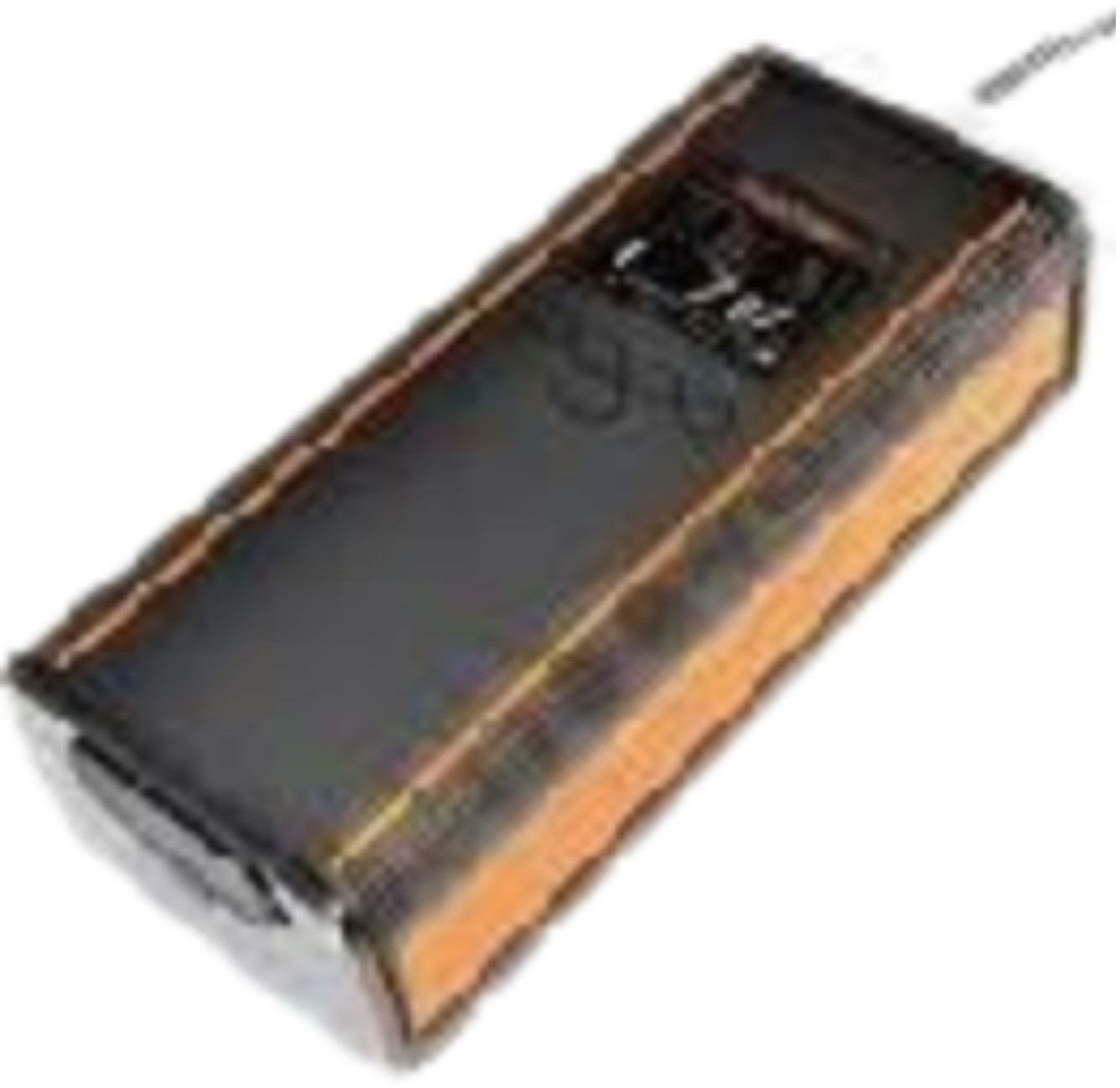

The Elcometer 510 Automatic Pull-Off Adhesion Gauge is an advanced Cross Hatch / Adhesion Tester designed to measure the adhesion strength of coatings on various substrates such as metal, concrete, and wood.

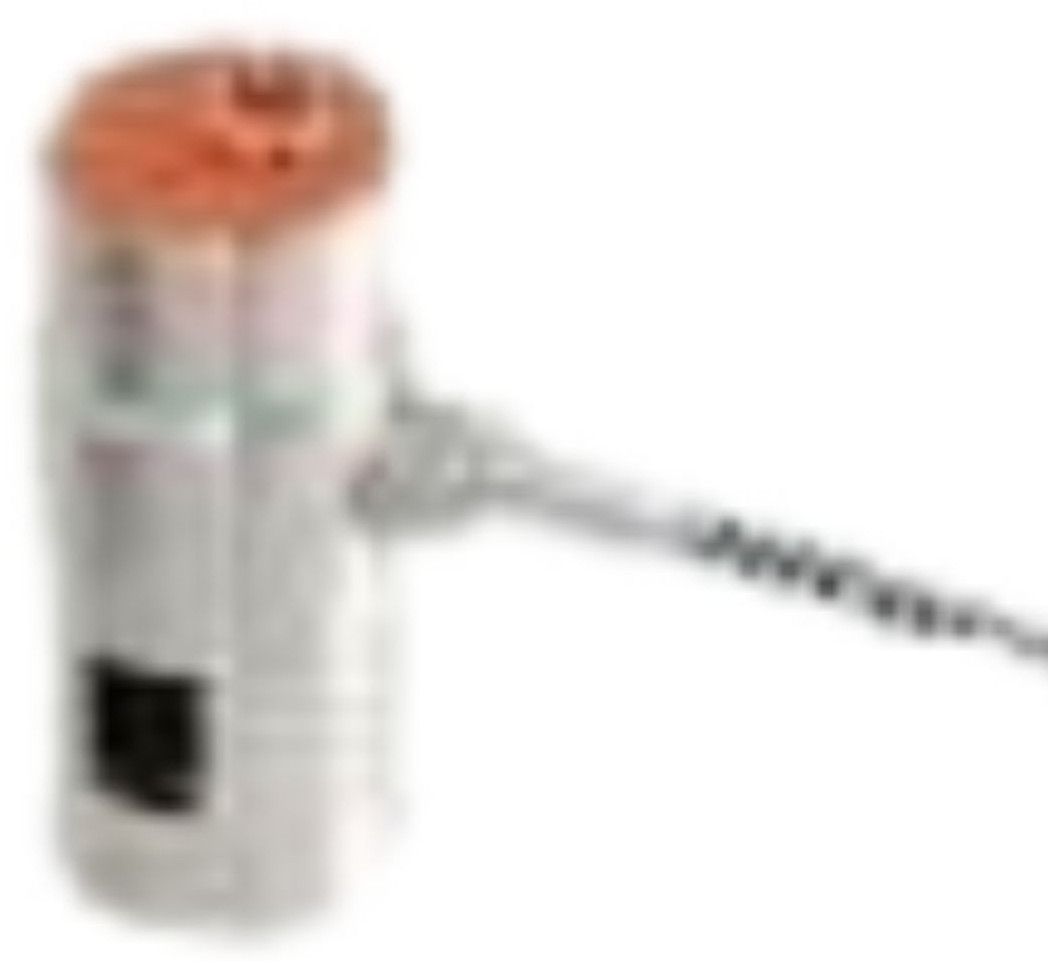

This automatic gauge applies a predefined pull rate to a dolly (test disk) bonded to the coated surface and accurately measures the force required to detach the coating, determining its bond strength in megapascals (MPa).
The device provides precise, repeatable results with minimal operator influence and supports various dolly sizes for different coating types and thicknesses.
It also features data logging and wireless connectivity for transferring results to Apple devices for further analysis and reporting.

• Automatic pull-off mechanism for consistent, repeatable results

• Selectable pull rates suitable for different coatings and substrates

• Wide measurement range (0–100 MPa) with high accuracy (±1%)

• Compatible with multiple dolly sizes (10–50 mm)

• Digital display with easy-to-read interface

• Built-in data storage and Apple device connectivity

• Rugged, portable design suitable for field and laboratory use

• Conforms to international testing standards (e.g., ASTM D4541, ISO 4624)

• Adhesion strength testing of paints, coatings, and linings

• Quality assurance in coating and surface treatment industries

• Inspection of metal, concrete, plastic, and composite surfaces

• Research laboratories and field testing environments
