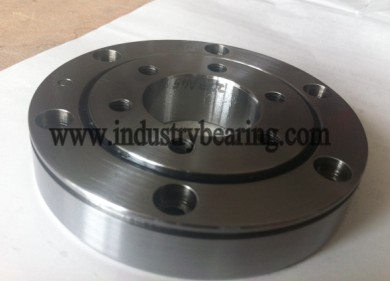

Cross Roller Bearings, Brand Name : INA

We are offering cross roller bearings.
Ina xu series cross roller bearing, for the rolling elements with x arrangement, xu series bearings can support axial forces from both directions as well as radial forces, tilting moment loads and any combination of loads with a single bearing position.
let’s check the technical datasheet for ina bearing xu080120,
type: crossed roller bearings, without gear teeth, sealed on both sides
principal dimension: 69mm x 170mm x 120.6mm x 119.4mm
maximum permissible radial loads: 10500n
axial dynamic load rating: 56000n
axial static load rating: 53000n
radial dynamic load rating: 35500n
radial static load rating: 26000n
preload bearing clearance: 0.005 – 0.008
weight: 4 kgs
contact: sales(at)hzskf.cn
yakang bearing supplies hereby listed many more part no. Of ina cross roller bearing,
ina part no.: di da
mm mm
xu050077 40 112
xu060094 57 140
xu060111 76,2 145,79
xu080120 69 170
xu080149 101,6 196,85
xu120179 124,5 234
xu120222 140 300
xu160260 191 329
xu080264 215,9 311
xu160405 336 474
xu080430 380 480
xu300515 384 646
xsa140414-n 344 503,3
xsa140544-n 474 640,3
xsa140644-n 574 742,3
xsa140744-n 674 838,1
xsa140844-n 774 950,1
xsa140944-n 874 1046,1
xsa141094-n 1024 1198,1
xsi140414-n 325 484
xsi140544-n 444 614
xsi140644-n 546 714
xsi140744-n 648 814
xsi140844-n 736 914
xsi140944-n 840 1014
xsi141094-n 984 1164
xa120235-n 171 318,8
xa200352-h 274 462
xv30 30 75
xv40 40 85
xv50 50 100
xv60 60 110
xv70 70 120
xv80 80 135
xv90 90 145
xv100 100 170
xv110 110 180
vu140179 124,5 234
vu200220 138 302
vu130225 200 290
vu200260 191 329
vu140325 270 380
vu250380 275 485
vu200405 336 474
vu250433 344 522
vu300574 468 680
vu360680 565 795
ina crossed roller bearings sx have long been the optimum solution in technical and economic terms where compact, easy-to-fit bearings with high tilting moments load carrying capacity, rigidity and accuracy are required in a bearing position.
