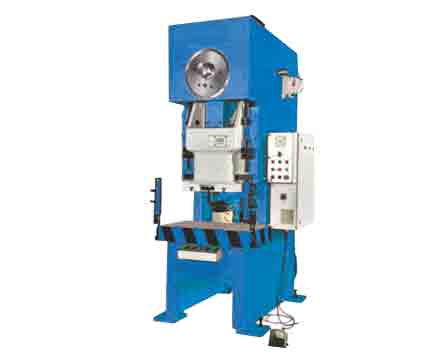

Contact SupplierStandard Accessories :Â
• Hydraulic Overload ProtectorÂ
• Manual Slide Adjustment Device (25-45)
• Elec. Slide Adjustment Device (60-250)
• Die Height Indicator (65-250)Â
• Counter Balancers of Slide.Â
• Rotary Cam Limit SwitchÂ
• Anti-repeat Safety DeviceÂ
• Magnetic Strokes CounterÂ
• Miss Feed Detector SocketÂ
• Pneumatic Ejector
• Air Outlet
• Maintenance Tools
Â
Â
Extra AccessoriesÂ
•Power Take-off Shaft
•Pneumatic Die Cushion
•Photoelectric Safety Device
•Variable Speed Motor (Inverter)
•Quick Die Change Device (Q.D.C.)
•Preset Counter
•Knockout Device
•Foot Switch
•Rubber Mount
apacity tf | 2.2 | 2.2 | 3.5 | 3.5 | 6 | 8 | 10 | 14 | 14 |
Length of Stroke mm. | 50 | 50 | 70 | 70 | 80 | 90 | 100 | 110 | 120 |
Area of Pad mm. | 300x210 | 300x210 | 340x234 | 340x234 | 410x260 | 480x320 | 540x340 | 640x440 | 740x540 |
Approx. Weight Kg. |
Sr. No. | 1 | 2 | 3 | 4 | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S | H | P | S | H | P | S | H | P | S | H | P | S | H | P | |||||||||||||||||||||||||||||||||||||||||||||||
Capacity tf | 25 | 35 | 45 | 60 | 80 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Length of Stroke (D) mm | 80 | 50 | 35 | 90 | 60 | 40 | 110 | 70 | 45 | 130 | 80 | 50 | 150 | 100 | 60 | ||||||||||||||||||||||||||||||||||||||||||||||
Stroke per Minute | Fixed Speed | S.P.M |
90
|
110 | 140 | 80 | 100 | 130 | 70 | 90 | 120 | 60 | 80 | 100 | 60 | 80 | 100 | ||||||||||||||||||||||||||||||||||||||||||||
Variable Speed |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
Tonnage Rating Point (B.D.M.) mm | 3. 2 | 2.3 | 3. 2 | 2.3 | 3.2 | 2.3 | 4 | 2.3 | 5 | 3.2 | |||||||||||||||||||||||||||||||||||||||||||||||||||
Die Height (D.M.) mm |
|
200 |
|
220 |
|
240 |
|
270 |
|
300 | |||||||||||||||||||||||||||||||||||||||||||||||||||
Adjustment of Slide (G) mm | 50 | 50 | 60 | 70 | 80 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Area of Slide (PxQ) mm | 330x250 | 380x300 | 430x350 | 480x400 | 560x460 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Diameter of Shank Hole mm | Φ 38.1 | Φ 50.8 | Φ 50.8 | Φ 50.8 | Φ 50.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Area of Bolster (ExF) mm | 700x320 | 780x400 | 840x440 | 900x520 | 1050x600 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thickness of Bolster (T) mm | 85 | 100 | 115 | 130 | 140 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Height of Bolster (Z) mm | 800 | 800 | 800 | 900 | 900 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Inside Measurement Frame (R) mm | 394 | 490 | 516 | 544 | 610 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Motor |
Fixed Speed HPxP | 5x4 | 5x4 | 5x4 | 71 / 2x4 | 10x4 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Variable Speed | 5x4 | 5x4 | 71 / 2x4 | 10x4 | 10x4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motor Floor Slide Adjustment HPxP | - | - | 0.5x4 | 0.5x4 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Foot Size (AxB) mm | 750x1058 | 830x1125 | 890x1210 | 940x1315 | 1050x1480 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Position of Anchor Bolts (MxN)mm | 620x860 | 730x925 | 790x1010 | 840x1115 | 950x1230 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Floor Space Required (WxLxH)mm | 893x1280x2060 | 1000x1410x2180 | 1053x1490x2340 | 1100x1600x2540 | 1212x1820x2750 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accuracy | CNS 1st | CNS 1st | CNS 1st | CNS 1st | CNS 1st |
Sr. No. | 6 | 7 | 8 | 9 | |||||||||||||||||||||||||||||||||||||||||||||
S | H | P | S | H | P | S | H | P | S | H | P | ||||||||||||||||||||||||||||||||||||||
Capacity tf | 110 | 160 | 200 | 250 | |||||||||||||||||||||||||||||||||||||||||||||
Length of Stroke (D) mm | 180 | 110 | 70 | 200 | 130 | 80 | 220 | 150 | 90 | 250 | 180 110 | ||||||||||||||||||||||||||||||||||||||
Stroke per Minute | Fixed Speed | S.P.M | 50 | 70 | 90 | 40 | 60 | 80 | 35 | 50 | 65 | 30 | 45 | 55 | |||||||||||||||||||||||||||||||||||
Variable Speed |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||
Tonnage Rating Point (B.D.M.) mm | 5 | 3.2 | 6 | 4 | 6 | 4 | 6 | 4 | |||||||||||||||||||||||||||||||||||||||||
Die Height (D.M.) mm |
|
320 |
|
360 |
|
400 |
|
400 | |||||||||||||||||||||||||||||||||||||||||
Adjustment of Slide (G) mm | 90 | 100 | 110 | 120 | |||||||||||||||||||||||||||||||||||||||||||||
Area of Slide (PxQ) mm | 650x580 | 720x580 | 860x650 | 960x720 | |||||||||||||||||||||||||||||||||||||||||||||
Diameter of Shank Hole mm | Φ 50.8 | Φ 65 | Φ 65 | Φ 65 | |||||||||||||||||||||||||||||||||||||||||||||
Area of Bolster (ExF) mm | 1150x680 | 1250x760 | 1400x840 | 1500x900 | |||||||||||||||||||||||||||||||||||||||||||||
Thickness of Bolster (T) mm | 155 | 165 | 180 | 180 | |||||||||||||||||||||||||||||||||||||||||||||
Height of Bolster (Z) mm | 900 | 900 | 1000 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||
Inside Measurement Frame (R) mm | 670 | 730 | 900 | 970 | |||||||||||||||||||||||||||||||||||||||||||||
Main Motor |
Fixed Speed HPxP | 10x4 | 15x4 | 20x4 | 25x4 | ||||||||||||||||||||||||||||||||||||||||||||
Variable Speed | 15x4 | 20x4 | 25x4 | 30x4 | |||||||||||||||||||||||||||||||||||||||||||||
Motor Floor Slide Adjustment HPxP | 0.5x4 | 1x4 | 1x4 | 1x4 | |||||||||||||||||||||||||||||||||||||||||||||
Foot Size (AxB) mm | 1160x1680 | 1300x1985 | 1480x2113 | 1560x2400 | |||||||||||||||||||||||||||||||||||||||||||||
Position of Anchor Bolts (MxN)mm | 1060x1380 | 1180x1655 | 1360x1755 | 1440x2000 | |||||||||||||||||||||||||||||||||||||||||||||
Floor Space Required (WxLxH)mm | 1325x2020x2985 | 1145x2325x3315 | 1625x2455x3715 | ||||||||||||||||||||||||||||||||||||||||||||||
Accuracy | CNS 1st | CNS 1st | CNS 1st | CNS 1st |
Materials & Specifications are subject to change without notice.
