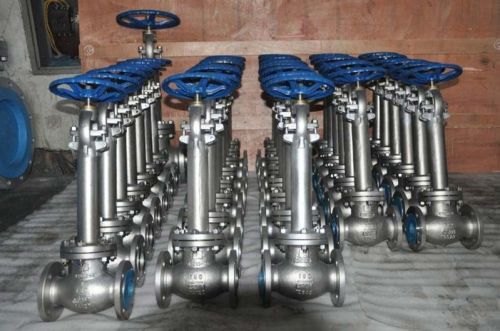

Cryogenic Globe Valve

Cryogenic Globe Valve that we manufacture, export and supply is made from high quality SS (stainless steel). Cryogenic Globe Valve is available in different sizes ranging from 2" to 24". Our Cryogenic Globe Valve features straight pattern body design, OS&Y, outside screw and yoke, BB, bolted bonnet, yoke integral with bonnet, rising stem and handwheel, renewable seat ring and flanged or butt welding ends.
Specifications :

• Connection : RF/RTJ Flange, Butt Welded
• Service temperature :  -196^oC ~ +120^oC
• Pressure Rating : Class 150Lb~ Class 2500Lb

Cryogenic Gate Valve Design Reference :

• Design and manufacturer standard : ASME B16.34
• Material pressure -temperature standard : ASME B16.10
• Flange ends dimension standard : AMSE B 16.5 (size ≤24 inch )
• Test & inspection : API 6D or API 598
