Contact Supplierdlc 660-ip pallet type

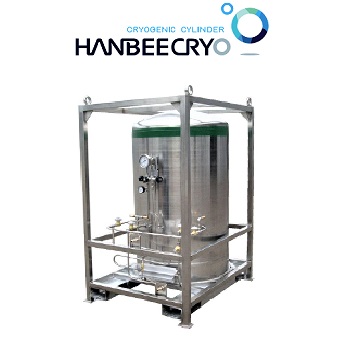

it is widely used in large quantity of gas demanding place where movement is necessary. It is a portable pallet type, which protects the container by frame, and is a large capacity container which is easy to move by forklift and hoist.
capacity and operating pressure can be ordered separately according to customer's request.
| dimensions | ||
| frame | 1100 x 1500 x 1900 | |
| cylinder | φ950 x 1600 | |
| empty wt.(kg) | 546 | |
| design pressure (mpa) | 1.91 | |
| safety relief set (mpa) | 2.4 | |
| liquid capacity | ||
| gross capacity | 660 | |
| net capacity (90%) | 594 | |
| storage meter, m3(at 0�, 1atm) | ||
| n2 | 384 | |
| o2 | 474 | |
| ar | 464 | |
| lng | 356 | |
| �충��무� (kg) | ||
| l.n2 | 1026 | |
| l.o2 | 1224 | |
| l.ar | 1378 | |
| l.co2 | 1204 | |
| net evaporations rate (%/day) | ||
| l.n2 | 1.5~2 | |
| l.o2 & l.ar | 1.2~1.8 | |
