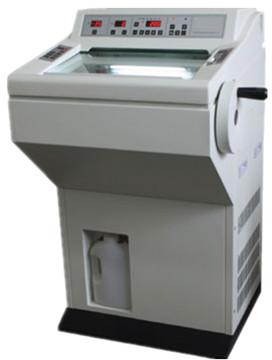

Cryostat Microtome, Brand Name : Shenyang

Cryostat Microtome RD-2298 ,Chamber temperature can drop within 120 minutes of turning
the unit on. The stand-by mode can be controlled between -4ºC and -9ºC automatically.
The system returns to working temperature within 15 minutes of initiation from stand-by mode.
Features:
v Large stainless steel freezing chamber and scrap collector
v Up to of 20 specimen pieces
v LCD screen shows thickness, function, day, time, temperature, and time onoff
v UVC sterilize function
v X, Y, Z, Achse orientation system
v Fast Freezing
v Two defrost methods
v Control panel with locking function
v Locking handwheel
v Sensor self-diagnosis function
Technical Specification
v Section thickness : 1-90μm
1μm increment from 1 to 20μm
2μm increments from 20 to 40μm
5μm increments from 40 to 90μm
v Trimming thickness : 10-400μm
5μm increments from 10 to 50μm
10μm increments from 50 to 100μm
50μm increments from 100 to 400μm
v Chamber temperature ; -10°C~-35°C
v Freezing shelf temperature : -45°C
v Peltier temperature -60°C
v Number of freezing station 20
v Peltier number 2
v Refrigerant R404A 300g±10g
v Retraction 20µm (on or off)
v Horizontal stroke 25mm
v Vertical stroke 59mm
v Maximum specimen size Φ55mm
v Specimen orientation 8°(X-, Y-, Z-Achse)
v Voltage 220V±10%(can be customized)
v Frequency 50Hz
v Power 650W
v Weight 140KG
