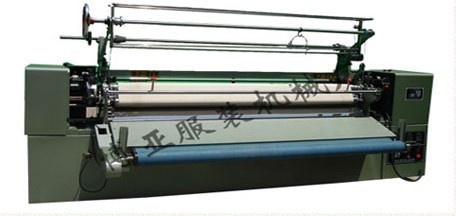

Crystal Multifunction Fabric Pleating Machine

We are offering zj-230 crystal multifunction fabric pleating machine.
Introduction
this machine is a special equipment for the pleating and hot setting of chemical fabrics and blend fabrics.the fabrics after processing are suitable for the making of garment,such as shirt,pajamas,children's garments,and all kinds of tents,covers and so on for adornment.
The series can be devided into 1 and 2 type in accordance with the function of the pleat machine,can individually pleat vertical pattern,bamboo-leaf pattern,wave pattern and various combined patterns with the help of conversion mechanism.the pleat machine of jacguard that is unique in design can pleat stereoscopic patterns with various alteration.contact us boyapleatingmachine (at) g m a I l (dot) c o m
specification
maximum pleating width:2900mm
maximum pleating speed:80pleatmin
voltage 380v
power of motor:1.2kw
power of heater:97kw
outline sizes:3500x1350x1500mm
weight:1300kg
