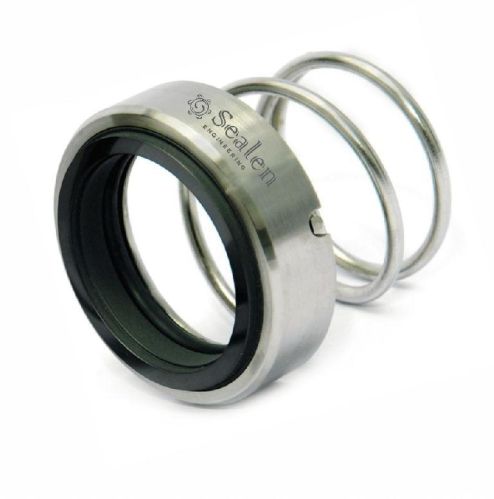

Conical Spring Seal CS 100 Series is a conical helical spring, unbalanced seal with ‘O’ ring as secondary sealing member. Various seal face & elastomers can be offered for different service applications. As the torque transmission is done by the conical helical spring, these seals are dependent of direction of rotation. Direction of rotation is seen from the drive end of the shaft. Clockwise rotating shaft requires right handed spring and anti clockwise rotating shaft requires left handed spring.

Seal Components/Face:

• Carbon / Lecrolloy
• Carbon / Ceramic
• Carbon / Silicon Carbide
• Silicon Carbide / Silicon Carbide
• Tungsten Carbide / Tungsten Carbide
• Secondary Seal : Elastomers, PTFE
• Metal Parts: SS 304, SS 316

Seal Characteristics:

• Single Acting
• Unbalanced
• Inside Mounted
• Single Conical Helical Spring
• Dependent of Direction of Rotation
• Torque Transmission by Conical Helical Sring
