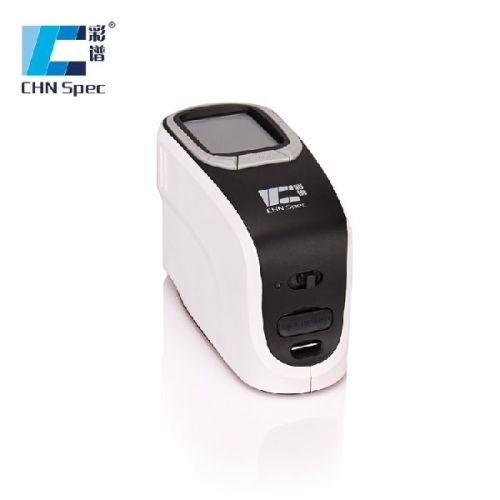

CS-580 Portable Cost Effective Electronic Spectrophotometer

1.brief introduction of spectrophotometer cs-580
our spectrophotometers adopt high technology from overseas. It tests based on the condition of d8 that is internationally used. Our device is widely used for color testing for any industry especially for painting, textile, plastic cement, food, building material and other products̢۪ color quality control. It could connect with color matching software.
2.advantages of our spectrophotometer cs-580
1).obtained metrology accreditation certificate in china
2).large data storage space
3).large tft display screen
4).modern and fashionable design based on human engineering
5).easy to operate and compact operation interface
6).pre-locating panel design for easy instrument calibration
7).uses led light source; high capacity rechargeable lithium-ion battery
8).can measure both sci(specular included)and sce(specular excluded) at the same time
9).includes pc software to manage data
10).can connect to micro-printers for printing
3.application of spectrophotometer cs-580
1).it can be applied to laboratories, factories and others field that need color testing;
2).allows medium and small companies to obtain high performance color management system;
3).technical data
type:cs-580
measure conditions:d8(diffused lighting, observe angle:8 degrees)
scs optical engine(light splitting and integration system),etc(every test calibration), sci(specular reflection included)sce(specular reflection excluded),simultaneous measurement(conform to cie no.15,iso 77241,astm e1164,din 5033 teil7, jis z8722 condition c standards)
interface:usb
data storage:20000 test results
packing size:181*73*112mm(l*w*h)
weight:about 550g
standard accessories:operate manual, color management software, drive software, electronic operate manual, color qc software, usb cable,calibration tiles
