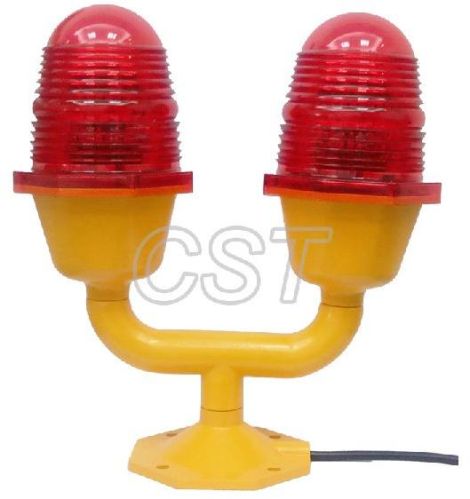

CS-810/D Low-Intensity Double Aircraft Warning Light

Main Parameter
1.Mode: CS-810/D
2.Standard: ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B and FAA L-810
3.Light intensity: ≥32.5cd(Type B),≥10cd(Type A)
4.Flash rate: Steady-burning model(Customized flashing mode)

5.Working way of two lights:

-Two light flashing by Main(duty)-standby way, Two lights flashing at the same time

-Two light working by Main(duty)-standby way, Two lights working at the same time.(Steady-burning mode, two ways)

6.Light source: LED
7.Service life of LED: ≥100,000hours
8.Operating voltage: AC110V to 240V (Customized DC24V,DC12V,DC48V)
9.Power consumption: 3W
10.Overall size(mm): 295 by 130 by 337
11.Installation size:  78 by 78 by 9

12. Vertical degree: ≥10°

13. Horizontal degree: 360°

14. Material:

-Housing: PC

-Base: die casting aluminum
15.Weight: 2Kg
16.Emitting color: Aviation red
17.Ambient temperature: -40+70
18.Wind load: 80m/s

19. Protection standard: IP65

Advantages

1.PC material with good impact protection strength, thermal stability, high transmittance.
2.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
3.LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
4.About 96% less power than 116W incandescent light.
5.Major maintenance cost saving, Surge protection device inside light.
6.Strong corrosion resistance, Shock and Vibrations protection and UV protection.

7.Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.

8.Free maintenance.

9.There is one switch converting between Flashing mode and Steady-burning mode.
