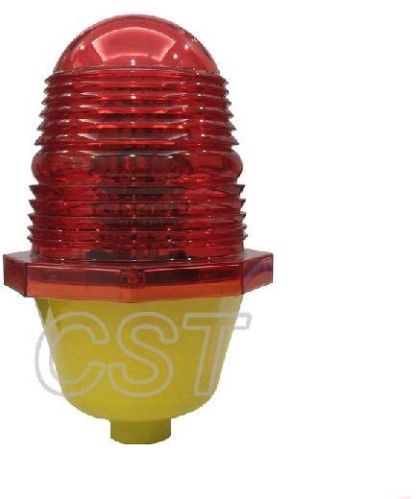

CS-810 Low-intensity Single Aviation Obstruction Light

Main Parameter
1.Mode: CS-810
2.Standard: ICAO (Aerodromes Annex 14) Low-intensity Type A or Type B and FAA L-810
3.Light intensity: ≥32.5cd(Type B),≥10cd(Type A)
4.Flash rate: Steady-burning model(Customized flashing mode)
5.Light source: LED
6.Service life of LED: ≥100,000hours
7.Operating voltage: AC110V to 240V (Customized DC24V,DC12V,DC48V)
8.Power consumption: 1W
9.Overall size(mm): 124 by 124 by 209
10.Installation size: 3/4inch

11.Vertical degree: ≥10°

12.Horizontal degree: 360°

13.Material:

-Housing: PC

-Base: die casting aluminum
14.Weight:1Kg
15.Emitting color: Aviation red
16.Ambient temperature: -40-+70
17.Wind load: 80m/s

18.Protection standard: IP65

Advantages
1.PC material with good impact protection strength, thermal stability, high transmittance.
2.Bird spike against bird drop.
3.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100,000hours.
4.LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5.About 96% less power than 116W incandescent light.
6.Major maintenance cost saving,Surge protection device inside light.
7.Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8.Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9.3/4inch installation size and small volume especially being suitable for telecom and flag-pole installation way

10.There is one switch converting between Flashing mode and Steady-burning mode.
