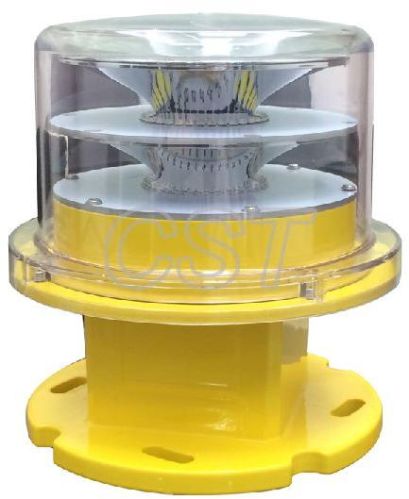

CS-864/D Medium-intensity Double Aviation Obstruction Light

Main Parameter
1.Mode:CS-864/D
2.Standard: ICAO (Aerodromes Annex 14) Medium-intensity Type B
3.Light intensity: 2,000cd ±25%
4.Flash rate: Flashing mode (20 to 60 times/minute)

5.Working way of two lights: Main (Duty)-standby way or Two light working at the same time.
6.Light source: LED
7.Service life of LED: ≥100,000hours
8.Operating voltage: (option voltage,eg. AC120V, AC110V, DC48V(DC24V,DC12V)
9.Power consumption: 20W
10.Overall size(mm): 214 by 214 by 224
11.Installation size(mm): 115 by 115 by M10

12.Vertical degree: 3°

13.Horizontal degree: 360°

14.Material:

-Housing: PC

-Base: die casting aluminum
15.Weight: 3Kg
16.Emitting color: Aviation red
17.Ambient temperature: -40~+60
18.Wind load: 80m/s

19.Protection standard:IP65

Advantages

1.Good impact protection strength, thermal stability, high transmittance.
2.Built-in circuit protect LED, extremely reliable and cost saving.
3.Shockproof and corrosion resistant. Working environment temperature: -40 ~ +60.It can be used in very poor conditions.
4.LED is special red color for Aviation Obstruction Light. Typical LED lifetime is more than 100,000 hours.

5.Resistant to heavy rain or storms and corrosion.
6.Free maintenance and aluminum alloy Material.

7.95% less power consumption than incandescent light

8.Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
