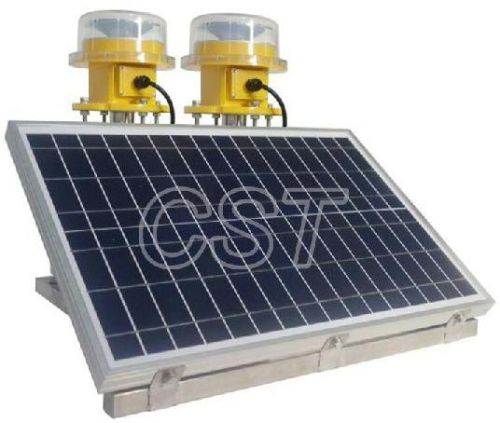

CS-864/T Medium-intensity Double Solar Aviation Obstruction Light

Main Parameter
1.Mode: CS-864/T
2.Standard: ICAO (Aerodromes Annex 14) Medium-intensity Type B, FAA L-864
3.Light intensity: 2,000cd ±25%
4.Working mode: Flashing mode (20-60times/minute)

5.Working way of Both Lights:

-Two lights flashing by Main-standby way.

-Two lights flashing by at the same time.
6.Light source: LED

7. Service life of LED: 100,000hours
8.Operating voltage: DC 12V (Solar powered Way),recyclable batteries with the lightest environmental and long life.

9. Material:

-Housing: PC

-Base: Aluminum  Alloy

10.Autonomy(without sunlight):at least 7 days
11.Power Consumption:20W
12.Overall Size(mm):472 × 525 × 490
13.Installation Size mm): 200 × 322 × M10

14.Weight:20Kg

15.Emitting Color: Red
16.Ambient Temperature:-40~+60
17.Wind load: 80m/s

18. Protection Standard: IP65

Advantage

1. International advanced solar panel reaching at least 10 years service life.

2. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.

3. Low power consumption profession flash switch.

4. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.

5. Strong impact lamp shape with PC material.

6. Strong corrosion resistance and UV protection.

7. At least 7 days autonomy.

8. Having lightning-protection function.

9. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
