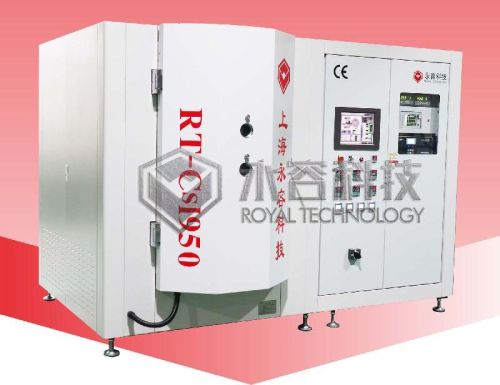

CsI High Vacuum Metallizing Machine, Brand Name : ROYAL

         CsI thin film deposition for X-ray Imaging devices is an advanced technique to evaporate CsI on the screen to give a high quality of imaging. With its high resolution performance, also widely used in security checking and inspection, high energy physics subjects , physics of nuclear energy areas etc.

The RTEP0913 thermal evaporation coating system was developed for CsI film deposition on X-ray imaging in high vacuum pressure environment. The CsI T1 scintillators ranging from 2 μm to 14 μm in thickness. The carbon layer film can be considered as post-deposition to improve high resolutions.

Cesium Iodide (CsI T1) Vacuum Deposition performance and characterizations

• Ultra- High Spatial Resolution of Imaging;
• Fast response for sharper imaging;
• Class leading edge-to-edge image areas;
• Optical absorb layers or reflector layers;
• Low patient X-ray dose;
• Suitable for CCD and CMOS devices, especially in medical industries.

Design Features:

Ultra-high ultimate vacuum pressure

Fast heating up devices

Proper high vacuum pump selection and pumping system to avoid hazard material's  exposed in the air;

High stability, working 960 hrs without stop.
