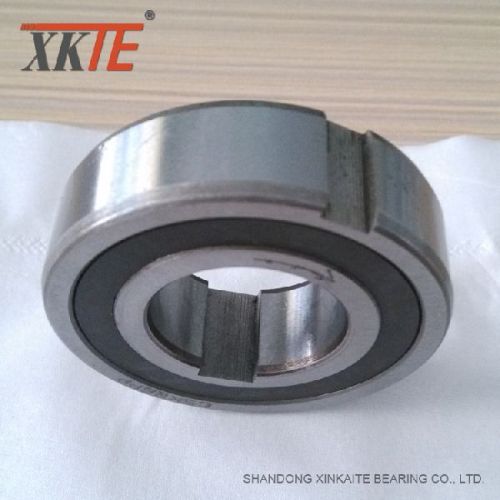

CSK40 CSK40P/PP Sprag Clutch Bearing

Sprag clutch bearing is also known as one way clutch bearing or backstops bearing. type csk are sprag type freewheels integrated into 62. Series ball bearings. the one-way bearings are used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage. Structureof csk one way bearing below: tolerances the standard version of our single-row deep groove ball bearings has the tolerance class p0 (designs with tighter tolerances available upon request) the shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan.  size: one way clutch csk type bearing no. Dimension (mm) torque mass d d b (n.m) (kg) csk8 csk 8p csk 8pp -- 8 22 9 2.5 0.015 csk12 csk 12p csk 12pp 6201 12 32 10 7.5 0.04 csk15 csk 15p csk 15pp 6202 15 35 11 13.5 0.05 csk17 csk 17p csk 17pp 6203 17 40 12 24.5 0.07 csk20 csk 20p csk 20pp 6204 20 47 14 40 0.11 csk25 csk 25p csk 25pp 6205 25 52 15 68 0.14 csk30 csk 30p csk 30pp 6206 30 62 16 110 0.21 csk35 csk 35p csk 35pp 6207 35 72 17 140 0.3 csk40 csk 40p csk 40pp -- 40 80 22 260 0.5 types: in addition to the basic csk model. Typecsk..p features a keyway on the inner race. Csk..pp features a keyway on both the innerand outer race. Csk..2rs csk .
