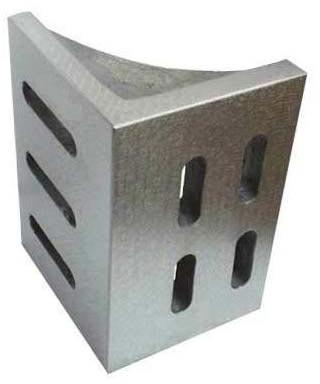

CSV SLOTTED ANGLE PLATE

We manufacture and supply a wide range of slotted angle plates, which are largely used in various industries for clamping and holding work in vertical position. These slotted angle plates are also used as a vertical reference for inspection and tooling purposes such as shaping, planning, milling, grinding, drilling etc. All 6 working faces of our angle plates are hand scrapped to desired accuracy and are square/right angle to each other. Fabricated using high quality closed grain cast iron of Grade FG-220, these angle plates comply with IS 2554:1971 standards.
Features :
â€Â¢ Castings are stress relieved either by natural ageing or by artificial seasoning and hand scrapped for surface finish of Grade-1 accuracy
â€Â¢ Angle plates of sizes above 300 mm are webbed to ensure rigidity
â€Â¢ Slots are machined for easy clamping
â€Â¢ Angle plates are supplied with calibration certificate traceable to National Physical Laboratory, New Delhi
Size in mm
L X B X H
125 X 75 X 100
175 X 100 X 125
250 X 150 X 175
350 X 200 X 250
450 X 300 X 350
600 X 400 X 450
Size Other Than IS
150 X 150 X 150
200 X 200 X 200
250 X 250 X 250
300 X 300 X 300
