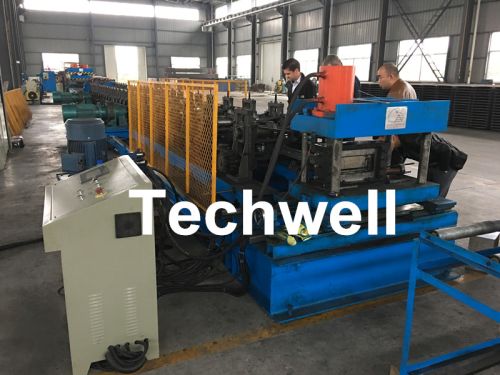

CT100-600 Electric Cable Ladder Roll Forming Machine

CT100-600 Electric Cable Ladder Roll Forming Machine for Making Steel Cable Tray Ladder Profile Sheets
Summary
1) This cable ladder roll forming machine adopt coil production material to form CT100-600 cable ladder Profiles through 5 Ton hydraulic decoiler, Leveling, Servo feeding, Hydraulic Pre-Punching Machine, Main cable ladder roll forming part, Post hydraulic cutting, hydraulic station, PLC control system and Non-power type support table.
2) The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.
3) Working Speed: about 0-15 mmin ( excluding punching & cutting time);
Main Specifications
1) Forming material thickness: 1.5-2.0mm
2) Forming material type: GI or Carbon Steel
3) Machine Frame: high grade steel welded and tempering treatment
4) Forming Speed: 0-15mmin excluding punching cutting time
5) Forming Motor: ≈15KW
6) Width adjustable motor ≈1.5KW
7) Size adjustment: electrical power adjustment
8) Drive type: Chain Drive
9) Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)
10) Shaft Diameter: Φ 70mm
11) Bearing: HRB bearing ( Top Chinese brand )
12) Roller Material: high grade GCr15 steel, and roller surface with hard chrome â‰Â¥ 0.05mm
13) Forming Station: ≈ 18 stations
14) Finished profile straightness tolerance â‰Â¤Ã‚±1.5mm10m
15) Finished profile angle tolerance â‰Â¤Ã‚±1.5 degree10m
