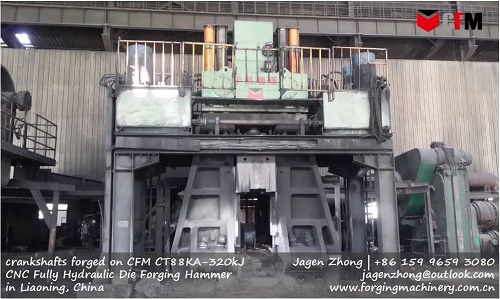

CT88K-400kJ CNC Fully Hydraulic Die Forging Hammer (over 200KJ)

Fully hydraulic driving system, avoiding oil and air mixing.
Flexible light striking and effectively controlled heavy striking, improved hammer reliability and adaptability.
Touch screen man-machine interface, numerical input, fault automatic diagnosis and alarm display in Chinese and English.
Striking energy and steps can be set numerically, which can reduce the surplus striking energy, lower the noise, prolong die lifetime.
Long ram structure and radial wide guide rails, which keep high guide accuracy of the ram.
Hydraulic driving system and power system assembled on top separately, no hydraulic pump station on floor
Advanced taper valve design, fast response, good sealing and not easy to generate inner leakage
Safety design for inner accumulator and pipeline assembly
Swaying compound oil cylinder and elastic flexible hammer rod, high and low pressure double anti-leakage design, which greatly improved the reliability of the forging hammer.
Slow up and down in the case of releasing hydraulic system pressure to make die changing safety.
Ram buffer is inner hydraulic buffer, to make sure ram movement safety and coordination;
