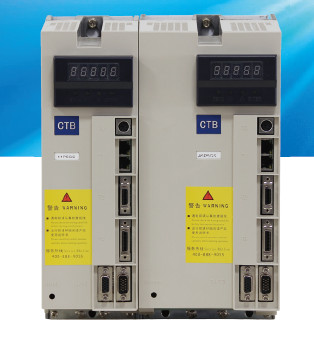

Ctb Gs Servo Drive, Phase : 3 phase, Certification : CE(TUV), ISO

We are offering ctb gs servo drive.
Technical features
1.speed range: the maximum speed reaches to 5000rm, the minimum speed can reach to 0.1rm when stable running.
2.mechanical resonance inhibiting function: it can set two trapping points to eliminate two mechanical resonance frequencies.
3.rapid dynamic response: bandwidth of speed loop is up to 500hz, speed of load is micro-variation when the load is fluctuating.
4.high accuracy of position control: difference of dynamic tracking is small, rapid location without trailing when running at high speed. Non-vibration when stopped.
5.six control mode: position mode, speed mode, torque mode, positionspeed mode, speedtorque mode, positiontorque mode. Pulse output can be divide to any value, and the frequency of divided pulse is stable and precise.
6.built-in breaking resistance: all series internally installed breaking units and resistances.
Application
1.digit-control equipment: cnc engraving and milling machine, electrical sparkle, linear cutting, etc.
2.electricity equipment: wire-stripping machine, winding, lithium battery production equipment, etc.
3.packing equipment: filling machine, sealing & cutting machine, etc.
4.textile equipment: flat knitting machine, hosiery machine, spinning machine, etc.
●suitable for various nc machine tool
nc milling machine nc lathe
working center nc boring machine
gantry machine nc vertical lathe
nc grinding machine turn-milling combined nc machine tool
special processing with full frequency domain
◇precise processing more than 6000 rpm
◇heavy cutting processing with low speed and big torque
◇reading below 40 rpm
◇thread machining with low speed
◇c axis function
◇drilling and tapping processing with high speed
●independent accurate stop control
gs series owns function of independent accurate stop control, which can fulfill stop control, whatever type of tools
