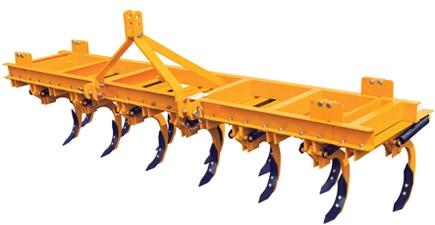

Cultivator

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Unique design of spring helps to absorbing shock which helps other tines to work a the correct Depth. Heavy duty angles give strength to spring loaded assemblies as once spring assembly fixed cannot be move or strain out of position. Swan Agro Heavy Duty Spring Loaded Cultivator is suitable for use in stone and root obstructed soil. It is used for loosening and aerating soil to a depth of nine inches.

View More Details

Send Enquiry

Company Information

Swan Agro

Kohara, Ludhiana, Punjab

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Description/Model	NSE HSLT 9	NSE HSLT 11	NSE HSLT 13	NSE HSLT 13
Frame (mm)	75 × 40		100 × 50
Spring (mm)	WD 10 & OD 50, 28.5 Coils
Tyne (mm)	50 × 25 ( Forged )
Pairs (mm)	65 × 65 × 6 (MS Angle)
Frame Bolts	M 12 × 35 High Tensile
Tyne Bolts	M 12 × 35 High, M 18 × 65 mm High Tensile
Linkage 3 Point (mm)	50 × 16 (Front) ,50 × 16 (Rear)		65 × 16(Front) , 50 × 16(Rear)
Shovel (mm)	8 (EN-42)
Length (mm )	2000	2457	2914	3371
Width ( mm )	850
Height ( mm )	585
Mounting Category	CAT ll
Weight ( Kgs. Approx. )	285	245	405	480
Tractor Power (HP)	40-50	50-55	60-65	70-75
