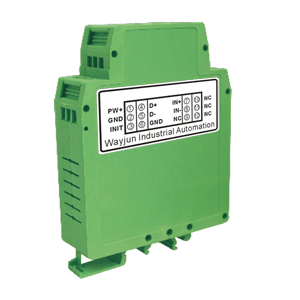

Current Signal Splitter

4-20mA0-10V signal isolated splitterisolated amplifier,DIN35 Rail-mounted
Features:
>>One input two output
>>Accuracy ---------- 0.1%, 0.2%
>>Isolation ---------- signal input output auxiliary power
>>One standard signal input: 0-5V 0-10V1-5V, 0-10mA 0-20mA4-20mA
>> Two standard output signal: 0-5V 0-10V1-5V, 0-10mA 0-20mA4-20mA
>>Dimensions: 106.7x79.0x25.0mm
>>Auxiliary power supply---------- DC5V(± 10%), 12V,15V, 24V(8-32VDC)
>>Insulation resistance ---------- ≥ 20MΩ
>>Operating Temperature ----------- 25 to +70 ° C
>>Pressure ---------- signal input output auxiliary power
>>Operating Humidity ---------- 10 ~ 90% (no condensation)
>>Storage Temperature ----------- 45 ~ +80 ℃
>>Impulse withstand voltage ---------- 3KV, 1.250us (peak value)
>>Storage humidity ---------- 10 ~ 95% (no condensation)
WAYJUN this product uses advanced isolated technology, quarantine inspection monitoring DC voltage signal, small size,low power,high accuracy. Inputoutputauxiliary power supply three isolation.Widely used in such fields as electricity, chemicals, petroleum, industrial and automatic control.
Samples:
1.Input:0-5V Power Supply:24V Output:two 4-20mA Type No.: DIN12 IAP- V1-P1-A4
2.Input:0-10V Power Supply:24V Output:0-10V4-20mA Type No.: DIN12 IAP-V2-P1-V2A4
3.Input:4-20mA Power Supply:24V Output:two 4-20mA Type No.: DIN12 IAP- A4-P1-A4
4.Input:0-10V Power Supply:24V Output:
