Current Transformer

Supply TypeSupplier
Preferred Buyer Location All over the world

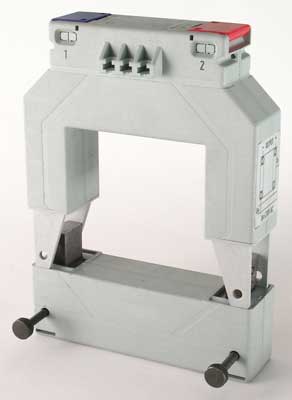

Our combined split core current transformer and electronic transducer is highly efficient and durable. The two components are fabricated into the same case. This Current Transformer provides a galvanic isolation between the supply, the input and the output.

Company Information

Member Since 15 Years
Nature of Business Supplier
Year of Establishment 2006

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Technical Data

Class of accuracy	0.5
Input	250...1600 A AC
Rated voltage	720 V.
Output (DC)	20 mA - RL=0...200Ω W 4...20mA - RL=0...200 Ω 10 V - RL > 2 k
Mains	230 V ± 10%
Rated frequency	50-60 Hz.
Working temperature range	0... +45^oC.
High voltage test	4 kVeff, 50 Hz, 1 min.
Insulation class	E (max. 120^oC)
Protection	IP 00.
Case	non-flammable plastic, UL 94 V-0.
