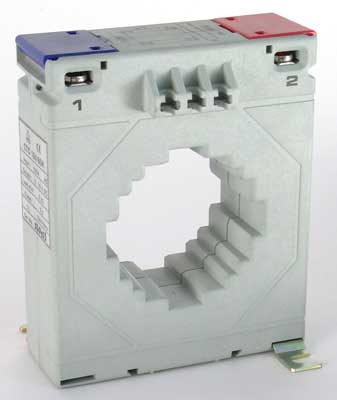

Current Transformer

Supply TypeSupplier
Preferred Buyer Location All over the world

We provide high quality two in one Current Transformer that is available in combination with electronic transducer. These two components are fabricated in the same case. It offers a galvanic isolation between the sensing circuit, the electronic circuit and mains.

Company Information

Member Since 15 Years
Nature of Business Supplier
Year of Establishment 2006

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Technical Data

Class of accuracy	0.5
Input	100...1000 A AC
Rated voltage	720 V.
Output (DC) Rated burden	0...20 mA - RL=0...200Ω W 4...20mA - RL=0...200 Ω 10 V - RL > 2 k
Mains	230 V ± 10%
Rated frequency	50-60 Hz.
Working temperature range	0... +45^oC.
High voltage test	4 kVeff, 50 Hz, 1 min.
Insulation class	E (max. 120^oC)
Protection	IP 00
Case	non-flammable plastic, UL 94 V-0.
