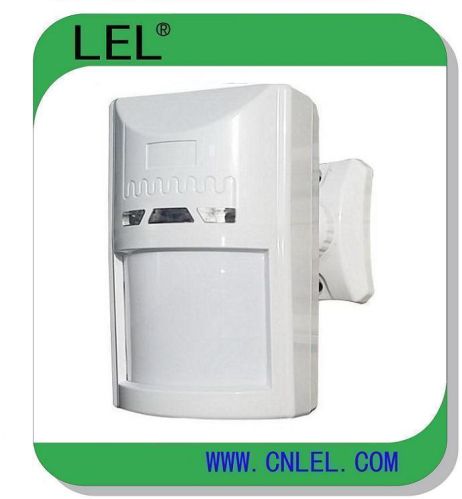

Curtain Usage Passive Infrared Motion Detector For Home Security

MOQ5 Piece(s)
ApplicationSecurity and protection
Number Of FlowerPIR motion detector
Country of OriginChina
Installation height2.0~2.4m
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Supplier
Year of Establishment 2013

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerPIR motion detector
ApplicationSecurity and protection
Country of OriginChina
Working temperatureWorking Temperature -10℃~+50℃
Alarm outputNC/NO Optional, DC30V/2A
WeightDetector: 78g/pc, Stand:26g/pc
InstallationPlug-Pull & Wall-Mounted
Tamper switchNormal: NC(125VAC/1A); Opening Cover: NO
Operating voltageDC10~24 V
Installation height2.0~2.4m
FunctionIntruder detection
DimensionLength: 95mm, Width: 60mm, Height:52mm
Detecting angle15 degree
Anti-white light≥6500LUX
Detecting distance12m
Current consumption≤30mA(12VDC)
Model NumberLPS-C10

We are offering cost effective narrow angle pir detector
15 degree detecting coverage, 10m detecting distance
patent design with top quality
dual environment temperature compensation technology
flexible jumper design to enabledisable alarming LED
detecting sensitivity adjustable
plug-pull installation method
