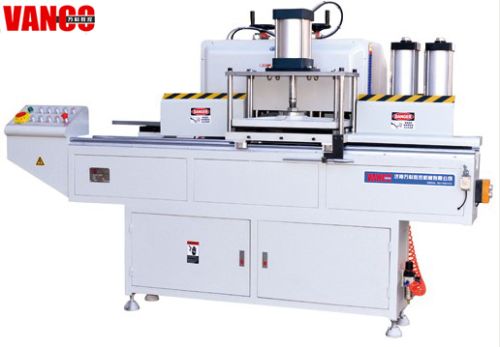

Cutter Auto-adjust Milling Machine

We are offering cutter auto-adjust milling machine for aluminum door and window lxdb-250b
functions:
used to milling window beam profile and enhanced beam profile’s section, this ensures connecting of different cross profile.
Features:
1. Latest double-oil cylinder ensures stable working.
2. It can mill several profiles in one time with high efficiency.
3. Universal milling blades can be adjusted in updown, leftright directions and not made extra, which to fit for different processing requirement and ensure the efficient working.
4. The cutter is no need to be customized due to the adjustment of it, which is shortening production arrangements, time and reduce cost.
5. It can finish the cutting of window enhanced beam profile in one time.
9. Large tools with high and stable milling speed guarantee the working quality.
Technical parameter:
power supply: 380v50hz, three-phase five-wire
motor power: 8.8kw
operation air pressure: 0.5~0.8mpa
air consumption: 0.2m³min
saw blade standard: φ350mm*φ32mm*3.0mm*120t
φ250mm*φ32mm*6.0mm*40t
φ250mm*φ32mm*8.0mm*40t
motor revolving speed: 2800rmin
milling depth: 100mm (max)
milling height: 90mm (max)
dimension: 3500mm*970mm*1640mm (l*w*h)
weight: 750kg
