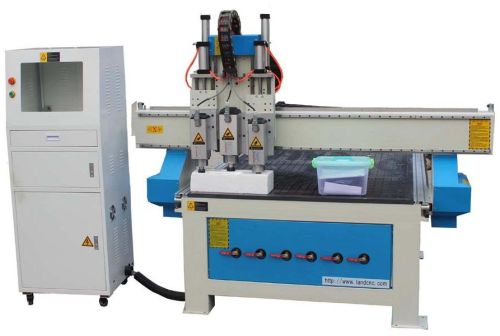

We offer pneumatic three head cnc router.
Parmeters:
working area : 1300*2500*200mm, 1500*3000*200mm
screen precision : 0.0109mm
spindle power : 4.5kw*3
working voltage : ac 380v 50 hz
max. Travelling speed : 800mmmin
spindle speed : 6000-18000rpm
feed rate : 200mm
tool diameter : ɸ3.175, ɸ 6, ɸ 12
working dictate : hpgl, g code, eng
features:
pneumatic multi-head mainly used for tool changer during the processing. In the processing time sometime need two or three different tool carving pattern effect, in order to shorten the tool change tie, use pneumatic multi-head is very reasonable process documents for tool change.
1.integrally cast lathe bed under vibration aging tratment, ensures minimum distortion.
2. Double motors and driver of y axis ensures steady movement.
3. High accuracy rack gear transmission ensures fast speed and high accuracy.
4. Optimizeed mechanical and electrical designes with well-selected brands parts miniized breakdown rate.
5. High power spindle, ensures the machine can be greatly cut.
6. Function of continuous working at stop point by power failure.
7. Optional vaccume cleaner.
applications:
applicable to the production of wood, stereo wave plate processing, cabinet doors, solid wood doors, craft wood doors, paint free doors, folding screen, wood grid , hotel decoration, home decoration, furniture, redwood, european furniture, advertising signs, acrylic cutting and blister molding, wood and alike non- metal material, process window processing, shoe polisher, cabinet and panel, model making, computer desk and panel-type furniture’s assistance processing
